Silver Tantalum Sulfide (AgTaS3) Powder

2D Materials, Low Dimensional Materials, Materials, Transition Metal Chalcogenides (TMCs)

High quality, high purity AgTaS3 powder

Suitable to process nano-plates into few-layer films

Technical Data | MSDS | Literature and Reviews | Related Products

2D layered silver tantalum sulfide (AgTaS₃) belongs to the family of ternary metal sulfides which are promising alternatives to noble metals for its excellent redox reversibility, high electronic conductivity and capacitance. Binary metal sulfides can be used as electrode materials for lithium-ion batteries (LIBs), supercapacitors (SC), and solar cells applications.

Atomically thin AgTaS₃ layers can be synthesized through a facile probe sonication exfoliation of either bulk crystals or powder.

High Purity

≥99.995% AgTaS3 Powder

Worldwide shipping

Quick and reliable shipping

Low Cost

Low Cost AgTaS3

Applications

Process nano-plates into few-layer films

Technical Data

CAS Number	N/A
Chemical Formula	AgTaS₃
Molecular Weight	385.01 g/mol
Bandgap	E_g = 0.006 eV
Preparation	Synthetic - Chemical Vapour Transport (CVT)
Structure	Orthorhombic
Electronic Properties	2D semiconductor, Weyl semimetals
Melting Point	N/A
Colour	Dark
Synonyms	Silver trithiotantalate
Classification / Family	Ternary metal sulfides (TMSs), 2D Semiconductor materials, Nano-electronics, Nano-photonics, Transistors, Photovoltaics, Materials science

Product Details

Form	Purity
Powder	≥99.995%

Pricing Table

Product Code	Form	Quantity	Price
M2328C1	Powder	500 mg	£220
M2328C1	Powder	1 g	£350

MSDS Document

Silver tantalum sulfide powder

Structure of Silver Tantalum Sulfide Powder

AgTaS₃ crystallizes in the orthorhombic Cmcm space group in three dimensional structure. Ta⁵⁺ is bonded in a 8-coordinate geometry to eight S^2- atoms while Ag⁺ is bonded in a 2-coordinate geometry to six S^2- atoms. S^2- sites are inequivalent in the structure with each of one set of S^2- ions is bonded in a 3-coordinate geometry to three equivalent Ta⁵⁺ and two equivalent Ag⁺ atoms while each of the other set S^2- ions is bonded to two equivalent Ta⁵⁺ and two equivalent Ag⁺ atoms to form corner-sharing [STa2Ag2] tetrahedra.

The layer is composed of Ta-centred bicapped trigonal prisms stacked on top of each other by sharing triangular faces with each layers are held together through van der Waals interactions. Ag⁺ions reside in the distorted octahedral sites between the layers.

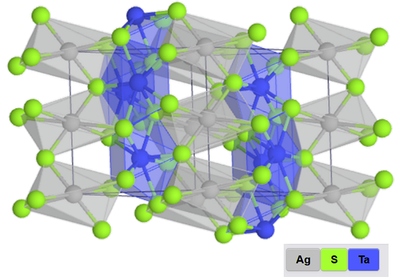

AgTaS3 crystal structure — Silver tantalum sulfide (AgTaS3) crystal structure

Applications of Silver Tantalum Sulfide Powder

AgTaS₃is nonlinear in optical response thus can have applications in signal processing, optical computers, ultrafast switches, ultra-short pulsed lasers, sensors and laser amplifiers,

AgTaS₃also may also be used for for low-power and high-speed electronics.

Synthesis

Obtained via the CVT method, AgTaS₃powder with purities of over 99.995% have been achieved.

Usage

AgTaS₃ powder is suitable for liquid chemical exfoliation to process AgTaS₃ nano-plates down to few-layer films. High-quality, high-purity AgTaS₃ powder is also used for CV deposition of ultra-thin single or few-layer films.

Literature and Reviews

Comprehensive scan for nonmagnetic Weyl semimetals with nonlinear optical response, Q. Xu et al., npj Comput Mater 6, 32 (2020); DOI: 10.1038/s41524-020-0301-1.
Structure and Electrical Conductivity of AgTaS3, C. Kim et al., J. Solid State Chem., 132 (2), 389-391 (1997); DOI: 10.1006/jssc.1997.7478.
Structure and properties of a new compound AgTaS3, H. Wada et al., J. Solid State Chem., 97 (1), 29-35 (1992); DOI: 10.1016/0022-4596(92)90005-G.

Raman and infrared studies of a silver–tantalum sulfide with a layered structure, M. Ishii et al., Mater. Res. Bull., 35 (8), 1361-1368 (2000); DOI: 10.1016/S0025-5408(00)00324-X.
