N749 Black Dye

CAS Number 359415-47-7

A ruthenium terpyridine complex

applied as a dye for dye-sensitized solar cells

Specifications | MSDS | Literature and Reviews

N749, [(C₄H₉)₄N]₃[Ru(Htcterpy)(NCS)₃], also referred to as "black dye", was developed for the widest range spectral sensitisation of wide band-gap oxide semiconductors (like titanium dioxide up to wavelengths beyond 800nm). N749 black dye is a ruthenium complex, in which the ruthenium center contains one terpyridine ligand substituted with three carboxyl groups and three thiocyanato ligands

Despite its lower absorption extinction coefficient, a certified conversion efficiency of 11.1 % was achieved by employing a high-haze TiO₂ electrode.

Ruthenium terpyridine complex

A high performance dyes used in DSSCs

Worldwide shipping

Quick and reliable shipping

Wide range spectral sensitization

up to wavelength 800 nm

High purity

>95%

General Information

Full name	Tris(N,N,N-tributyl-1-butanaminium)[[2,2′′6′,2′′-terpyridine]-4,4′,4′′-tricarboxylato(3-)-N1,N1′,N1′′]tris(thiocyanato-N)hydrogen ruthenate
Synonyms	N749 Dye Black dye Ruthenium 620
Chemical formula	C₆₉H₁₁₇N₉O₆RuS₃
Molecular weight	1365.98
CAS number	359415-47-7
HOMO / LUMO	HOMO = -5.2 eV, LUMO = -3.8 eV
Solubility	Ethanol or acetonitrile/tert-butanol (v/v = 1)
Classification / Family	Transition metal complex, Ruthenium complex, Bipyridyl ligands, Energy materials, Dye-sensitized solar cells (DSSC) materials, Donor materials, OPV materials.

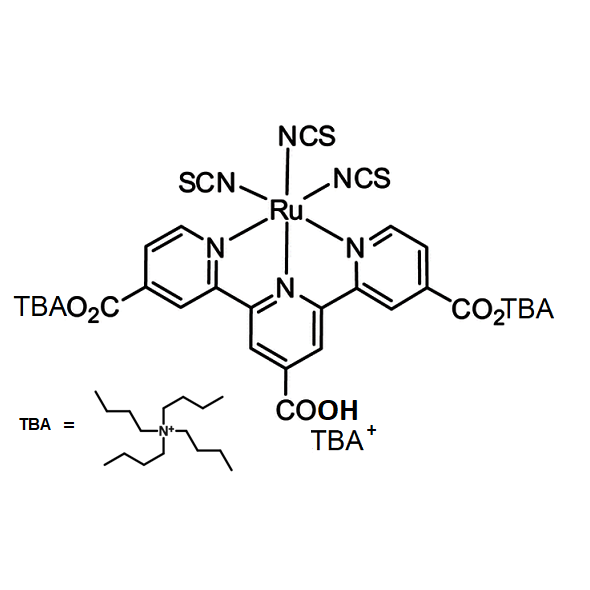

n749 black dye chemical structure, 359415-47-7 — Chemical structure of N749 Black Dye; Chemical formula: C₆₉H₁₁₇N₉O₆RuS₃

Product Details

Purity	>95%
Melting point	No data available
Appearance	Dark green powder

MSDS Documentation

N749 Black Dye MSDS Sheet

Literature and Reviews

Engineering of Efficient Panchromatic Sensitizers for Nanocrystalline TiO2-Based Solar Cells, M. K. Nazeeruddin et al., J. Am. Chem. Soc., 123 (8), 1613–1624 (2001); DOI: 10.1021/ja003299u.
Acetonitrile Solution Effect on Ru N749 Dye Adsorption and Excitation at TiO2 Anatase Interface, Y. Tateyama et al., J. Phys. Chem. C, 118 (30), 16863–16871 (2014); DOI: 10.1021/jp5004006.
Protonated Carboxyl Anchor for Stable Adsorption of Ru N749 Dye (Black Dye) on a TiO2 Anatase (101) Surface, K. Sodeyama et al., J. Phys. Chem. Lett., 3 (4), 472–477 (2012); DOI: 10.1021/jz201583n.

Selective positioning of organic dyes in a mesoporous inorganic oxide film, K. Lee et al., Nat. Mater., 8, 665-671 (2009); doi:10.1038/nmat2475.
Significant Efficiency Improvement of the Black Dye-Sensitized Solar Cell through Protonation of TiO2 Films, Z. Wang et al., Langmuir, 21 (10), 4272–4276 (2005); DOI: 10.1021/la050134w.
