Ir(ppy)2(bpmp)

CAS Number 1215692-34-4

Dopant Materials, Green Dopant Materials, High Purity Sublimed Materials, Materials, OLED Materials, Semiconducting Molecules

MSDS

Ir(ppy)2(bpmp), phosphorescent green emitter

High-purity (>99%) and available online for priority dispatch

Like Ir(ppy)₃, [2-(4-methyl-5-phenyl-2-pyridinyl-κN)phenyl-κC]bis[2-(2-pyridinyl-κN)phenyl-κC] Iridium, known as Ir(ppy)₂(bpmp), is a phosphorescent green emitter. It is believed that the introduction of the methyl group at para position to the pyridine nitrogen can provide a twist and electron-donating effect. This raises the LUMO energy level of the complex and the triplet energy level, resulting in a blue shift in the emission.

General Information

CAS number	1215692-34-4
Chemical formula	C₄₀H₃₀IrN₃
Molecular weight	744.90 g/mol
Absorption	λ_max = 212 nm, 244 nm, 285 nm
Fluorescence	λ_em = 518.6 nm
HOMO/LUMO	No data available
Synonyms	[2-(4-methyl-5-phenyl-2-pyridinyl-κN)phenyl-κC]bis[2-(2-pyridinyl-κN)phenyl-κC] Iridium, Irppy2bpmp
Classification / Family	Iridium complex, Coordination compound, Phosphorescent green emitter, OLEDs, Organic electronics

Product Details

Purity	>99% (sublimed)*
Melting point / Thermal analysis	Thermal Gravimetric Analysis (TGA): 423.9 °C (5% weight loss Differential Scanning Calorimetry (DSC): 407.4 °C
Colour	Yellow powder/crystals

Purity

>99% (sublimed)*

Melting point / Thermal analysis

Thermal Gravimetric Analysis (TGA): 423.9 °C (5% weight loss

Differential Scanning Calorimetry (DSC): 407.4 °C

Colour

Yellow powder/crystals

*Sublimation is a technique used to obtain ultra pure-grade chemicals. For more details about sublimation, please refer to the Sublimed Materials.

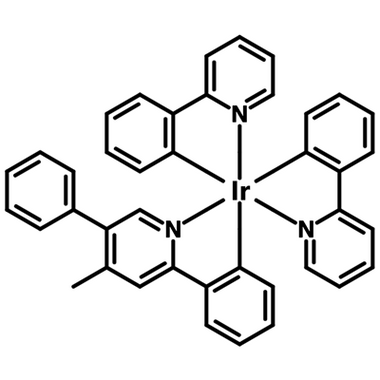

Chemical Structure

Device Structure(s)

Device structure	ITO/E1* (100 nm)/NPD (30 nm)/H2:Ir(ppy)₂(bpmp)* (10 wt%, 30 nm)/H2 (10 nm)/Alq₃ (40 nm)/LiF/Al [1]
Colour	Green
EQE@1000 cd/m²	17.2%
Current efficiency@1000 cd/m²	62.9 cd/A
Power Efficiency@1000 cd/m²	39.5 lm W⁻¹

*For chemical structure information please refer to the cited references.

Characterisation

HPLC of Ir(ppy)2(bpmp) — HPLC trace of Ir(ppy)₂(bpmp)

No.	Ret. Time (mins)	Height (mAU)	Area (mAU*min)	Rel. Area (%)	Type
1	5.07	0.013	0.002	0.0017	BMB*
2	5.58	0.463	0.086	0.0626	BMB*
3	7.28	0.015	0.004	0.0031	BMB*
4	8.92	508.916	136.024	99.6307	BMb*
5	10.27	0.037	0.006	0.0041	bMb*
6	10.65	0.013	0.002	0.0014	bMB*
7	10.98	0.012	0.002	0.0013	BMb*
8	11.37	0.030	0.007	0.0054	bMB*
9	12.12	0.013	0.004	0.0027	BMB*
10	12.77	0.019	0.006	0.0046	BMB*
11	14.15	0.065	0.024	0.0179	BMB*
12	15.63	0.837	0.361	0.2643	BMB*
Total:		510.430	136.528	100.00

Table of results for HPLC trace of Ir(ppy)₂(bpmp)

UV, photoluminescence of Ir(ppy)2(bpmp) — UV-Vis absorption and photoluminescence spectra of Ir(ppy)₂(bpmp)

DSC, TGA of Ir(ppy)2(bpmp) — DSC and TGA traces of Ir(ppy)₂(bpmp)

Pricing

Grade	Order Code	Quantity	Price
Sublimed (>99% purity)	M761	100 mg	£260
Sublimed (>99% purity)	M761	250 mg	£520
Sublimed (>99% purity)	M761	500 mg	£950
Sublimed (>99% purity)	M761	1 g	£1600

MSDS Documentation

Ir(ppy)2(bpmp) MSDS sheet

Literature and Reviews

Phosphorescent metal complexes and iridium complex preparation and organic light-emitting devices using the complexes, C. Xia et al., PCT Int. Appl. (2010), WO 2010028151 A1 20100311.
Organic electroluminescent devices having high luminous efficiency and good lifespan, K-J. Park et al., PCT Int. Appl. (2016), WO 2016013867 A1 20160128.
Heteroleptic cyclometalated phenylbenzimidazole iridium complexes as electroluminescent materials for organic light-emitting devices, Ger. Offen. (2014), DE 102014001468 A1 20140814.
