F HC Solar PEDOT:PSS
CAS Number 155090-83-8
Materials, Organic Conductors, PEDOT:PSS and PEDOT Polymer Blends
Water-Based PEDOT:PSS Formulation
Used for applications in OPV and perovskite solar cells
Specifications | MSDS | Resources and Support
F HC Solar (CAS number 155090-83-8) is a water-based PEDOT:PSS formulation. F HC Solar is especially developed for applications in organic photovoltaics (OPVs), polymer and perovskite solar cells, and printed sensors. The main advantages of F HC Solar ink are its high conductivity and low contact angle, to improve the deposition on top of the active layer.
Low Contact Angle
Improve the deposition on top of the active layer
Versatile Use
Ideal for applications in OPV and perovskite solar cells
High Quality
Quality formulation
Tailored Conductivity
High conductivity, >500 S/cm
Technical Data
| Product Name | Clevios™ F HC Solar |
|---|---|
| Solvent | Water |
| Composition | PEDOT/PSS |
| CAS Number | 155090-83-8 |
| Solid Content | 1.0 – 1.5 wt.% |
| Work Function | 4.8 – 5.0 eV |
| Resistivity | <0.002 Ω/cm |
| Sheet Resistance | 100 – 1000 Ω/sq |
| Conductivity | High conductivity, >500 S/cm. Contact angle approx 10° (ITO), <30° (P3HT:PCBM) |
| Particle Size Distribution | N/A |
| Viscosity | 8 – 70 mPa.s |
| pH Value | 1.0 – 2.0 |

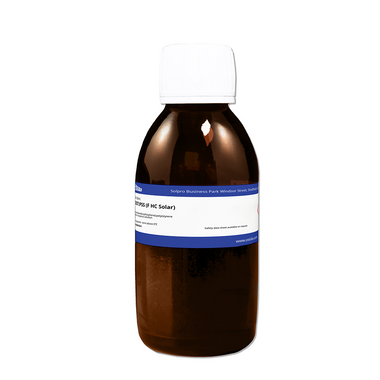

| Packaging | 100 ml of solution sealed in a light resistant bottle with temperature indicator |
| Storage | 3 – 5 °C |
Spin Speed Data
F HC Solar Spin Speed / Film Thickness
MSDS Document
F HC Solar PEDOT:PSS MSDS Sheet
Resources and Support
How to Spin Coat PEDOT:PSS
For the deposition of thin films of PEDOT:PSS on a freshly prepared surface, we recommend using a vacuum-free spin coater and following this five-step process:
Read more...
PEDOT and PEDOT:PSS Synthesis
PEDOT synthesis involves the oxidative chemical or electrochemical polymerization of EDOT monomer. The choice of counterions and polymerization method significantly affects the conductivity, work function, and stability of the resulting PEDOT polymer.
Read more...
