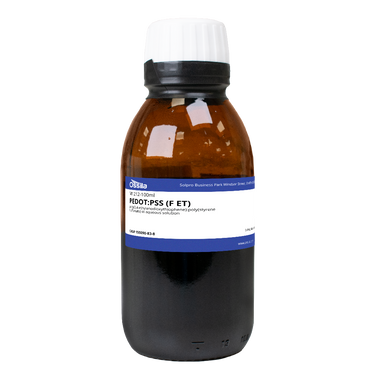

F ET PEDOT:PSS
CAS Number 155090-83-8
Materials, Organic Conductors, PEDOT:PSS and PEDOT Polymer Blends
Highly Conductive Blue PEDOT:PSS Dispersion
Used in transparent electrodes, smart windows, liquid crystal and touch displays, pressure sensors, and wearable electronics
Specifications | MSDS | Resources and Support
F ET PEDOT:PSS (CAS number 155090-83-8) is an aqueous PEDOT:PSS dispersion which is made as a formulation containing polymeric binder resins and functional additives designed for better film quality and processability. Similar to PH 1000 PEDOT:PSS, the ready-to-use F ET PEDOT:PSS ink is one of the most conductive range of PEDOT:PSS products with high Seebeck coefficient and promising thermoelectric (TE) power factors around 30 μW m–1 K–2.
F ET PEDOT:PSS finds application in transparent electrode, conductive textiles, touch displays, pressure sensors. It can be easily deposited either by a range of processes including spin coating, dip-coating, and slot die coating. Studies show that nitrogen gas plasma treatments of F ET PEDOT:PSS coated wool fabrics provide more intense color while retaining its electrical conductivity.
Versatile Use
Wide range of applications
High Quality
Quality formulation and tailored high conductivity
Enhanced Film Quality
Designed with the addition of polymeric binder resins
Worldwide Shipping
Quick and reliable shipping
Technical Data
| Product Name | Clevios™ F ET |
|---|---|
| Solvent | Water |
| Composition | PEDOT:PSS |
| Solid Content | 3.0 – 4.0 wt.% |
| Sheet Resistance | 100 – 1000 Ω/sq |
| Conductivity | 200 S/cm |
| Particle Size Distribution | N/A |
| Viscosity | 20 – 80 mPa.s at 20°C (100 s-1) |
| pH Value | N/A |
| Packaging | 100 ml of solution sealed in a light resistant bottle with temperature indicator |
| Storage | 3 – 5 °C |

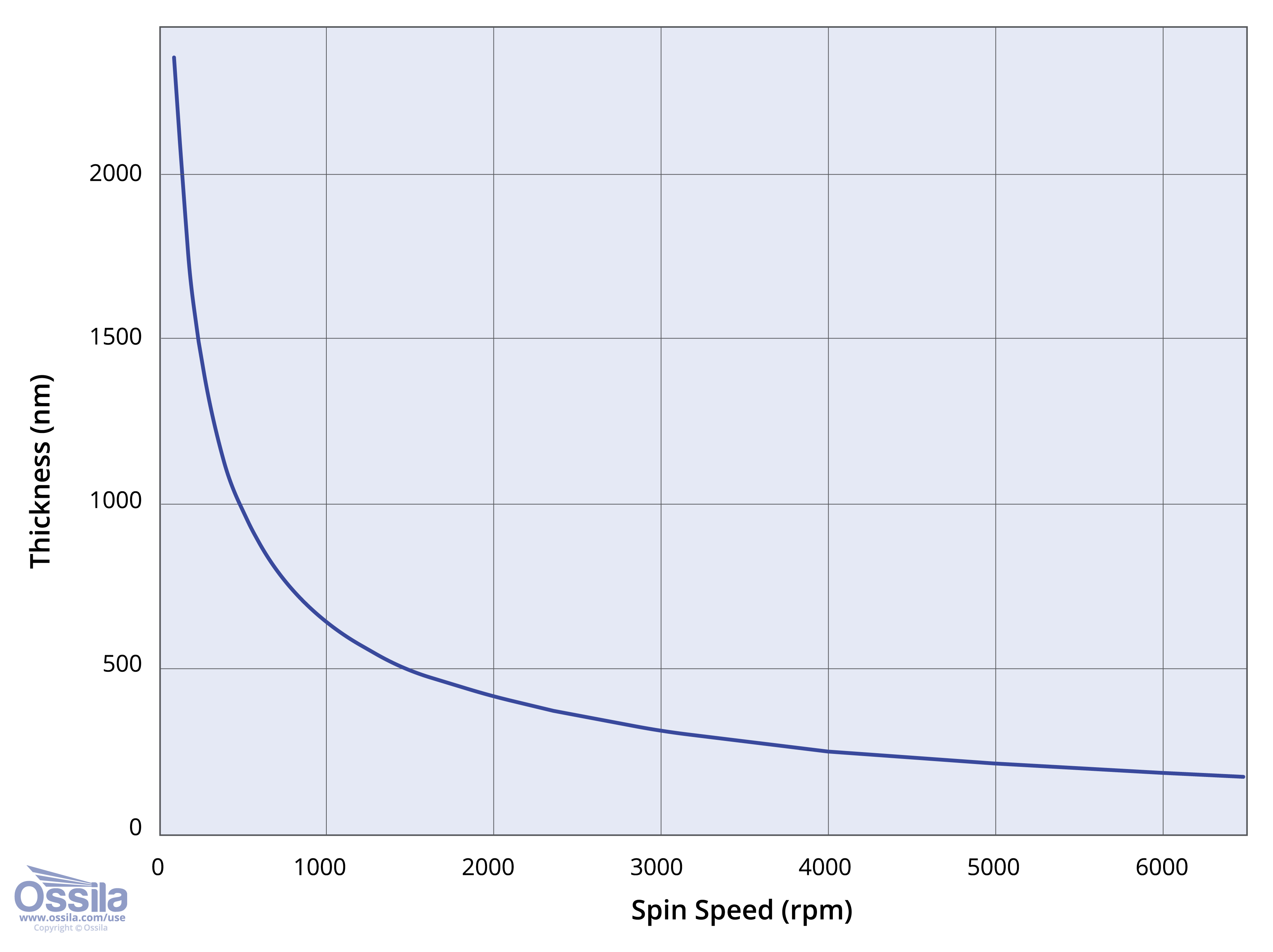

Spin Speed Data
F ET PEDOT:PSS Spin Speed / Film Thickness
MSDS Document
F ET PEDOT:PSS MSDS SheetResources and Support
How to Spin Coat PEDOT:PSS
For the deposition of thin films of PEDOT:PSS on a freshly prepared surface, we recommend using a vacuum-free spin coater and following this five-step process:
Read more...
PEDOT and PEDOT:PSS Synthesis
PEDOT synthesis involves the oxidative chemical or electrochemical polymerization of EDOT monomer. The choice of counterions and polymerization method significantly affects the conductivity, work function, and stability of the resulting PEDOT polymer.
Read more...
