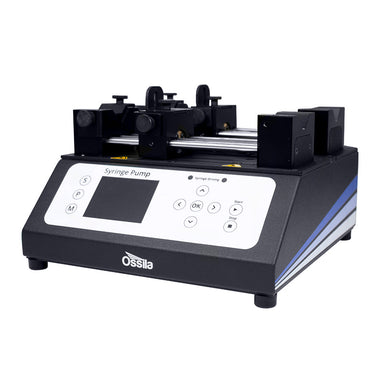

Accurate, Versatile, Programmable Dual Syringe Pump
Two-channel precise solution dispensing for continuous flow and complex experiments
Overview | Specifications | Features | Gallery | In the Box | Accessories | Resources and Support
The Ossila Dual Syringe Pump is capable of complex solution dispensing with high accuracy and precision using two independent syringe pump channels. Control the syringes in harmony for continuous flow, or seamlessly blend two solutions by varying dispensing ratios.
With flow rates ranging from 2.1 nl.hr-1- 15 l.hr-1, this dual syringe pump is perfect for a wide range of applications. This system combines an affordable and compact design with precision stepper motors and a rate accuracy of ±0.16% for maximum versatility. Our dual syringe pump includes easy-to-use integrated software but can be fully programmed using serial commands. Plus, this system also features a universal syringe clamp and channel, independent safety switches, and stall detection.
Two-Year Warranty
Covered by the Ossila Warranty
Precision Timing
Effortless automatic dispensing
Lightweight
Lightweight and durable design
Precision Motion
Quality motors ideal for sensitive experiments
Specifications
| Syringe Channels | 2 |
|---|---|
| Channel Dependency | Independent channel control |
| Operation Modes | Infusion and withdrawal |
| Minimum Syringe Size | 0.5 μl |
| Maximum Syringe Size | 60 ml |
| Minimum Flow Rate | 0.6 pl.s-1 / 2.1 nl.hr-1 (0.5 µl syringe) |
| Maximum Flow Rate | 4.2 ml.s-1 / 15 l.hr-1 (60 ml syringe) |
| Safety Features | Limit switches, Crashing sensing |
| Power | 24 V DC, 2.0 A |
| Power Supply Input Voltage Range | 100 – 230 V, 50/60 Hz, 50 VA |
| Operating Temperature/Humidity | 5 °C to 40 °C (41 °F to 104 °F); Up to 80% RH at 31 °C (87.8 °F) |
| Overall Dimensions (W x H x D) | 240mm x 150 mm x 260 mm (9.8" x 6.1" x 10.2") |
Motor
| Motor Type | NEMA 17 Stepper Motor |
|---|---|
| Step Angle | 1.8° |
| Steps per Full Revolution | 200 |
| Screw Pitch | 1 mm |
| Travel per Step | 5 µm |
| Maximum Linear Force | 500 N |
Driver
| Micro Stepping | 1/128 |
|---|---|
| Micro Steps per Revolution | 25,600 |
| Minimum Step Rate | 0.015 steps.s-1; 75nm.s-1; 4.5µm.min-1 |
| Maximum Step Rate | 1000 steps. s-1; 5mm.s-1; 300mm.min-1 |
| Rate Accuracy** | ±0.16% |
* The maximum speed can exceed the value stated above dependent upon solution viscosity, syringe diameter, tube/needle diameter, and tube/needle length.
** The Ossila Dual Syringe Pump has a stepping accuracy of 0.16%, giving a rate accuracy of 19 nm.s-1. This value may vary as the actual flow rate accuracy from a syringe pump depends on the accuracy of the driver and the syringe diameter. Different syringes have different manufacturing tolerances. The diameter of plastic disposable syringes can vary by up to 3%, resulting in an error in dispense rate of up to 6%. Glass and stainless steel syringes have a higher tolerance, with a maximum of 0.5% variation in the internal diameter and volume error of up to 1%.
Software
| Number of Programs | 10 |
|---|---|
| Steps per Program | 100 |
| Syringe Size Settings | 5 pre-sets, 1 customisable diameter |
| Force Tuning | 5% to 100% (5% increments) |
| Memory | Non-volatile memory |
Syringe Compatibility
Norm-Ject syringesHenke Sass Wolf (HSW)Terumo PlasticHamilton GastightHamilton MicroliterAir-Tite SyringesBD PlasticBD GlassSGE SyringesAnd more...Maximum and Minimum Flow Rate
Max and min flow rate of the syringe pump depends on the stepping rate of the motor and syringe diameter. Below are some maximum and minimum flow rates for some common syringe sizes. By choosing the correct syringe diameter, it is possible to achieve a range of dispense rates spanning 8 orders of magnitude.
| Syringe Volume | Syringe Diameter | Minimum Flow Rate | Maximum Flow Rate |
|---|---|---|---|
| 0.5 µl | 0.103 mm | 0.6 pl.s-1 (2.1 nl.hr-1) | 41 nl.s-1 (0.15 ml.hr-1) |
| 10 µl | 0.46 mm | 12.5 pl.s-1 (45 nl.hr-1) | 0.83 µl.s-1 (3 ml.hr-1) |
| 100 µl | 1.46 mm | 0.1 nl.s-1 (0.36 µl.hr-1) | 8.3 µl.s-1 (29.8 ml.hr-1) |
| 1 ml | 4.61 mm | 1.3 nl.s-1 (4.7 µl.hr-1) | 83 µl.s-1 (298 ml.hr-1) |
| 5 ml | 10.3 mm | 6.3 nl.s-1 (22.7 µl.hr-1) | 0.42 ml.s-1 (1.5 l.hr-1) |
| 50 ml | 32.6 mm | 62.6 nl.s-1 (225 µl.hr-1) | 4.17 ml.s-1 (15 l.hr-1) |
Product Certification and Standards
| CE |
Machinery Directive 2006/42/EC EMC Directive 2014/30/EU RoHS Directive 2011/65/EU |
|---|---|
| UKCA |
Supply of Machinery (Safety) Regulations Electromagnetic Compatibility Regulations Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations |
| Harmonised Standards | BS EN ISO 12100:2010 Safety of Machinery - General Principles for Design - Risk Assessment and Risk Reduction |
User Manual
Dual Syringe Pump user manualDual Syringe Pump Features
Dual Channels, Versatile Applications

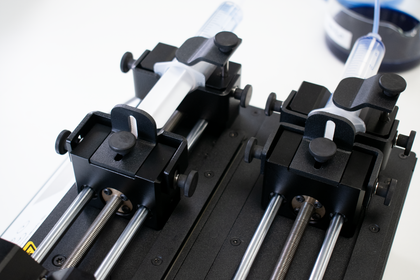

Each channel can be controlled independently with different dispense rates and independent motors. Syringes can withdraw and infuse simultaneously, or blend two different solutions in precise ratios. Conduct more complex processes with ease including continuous syringe pumping, emulsification processes, solution mixing, polymerisation or sequential layer deposition.
USB Connectivity, Fully Programmable
The Dual Syringe pump can be easily controlled by external systems. By connecting the system to a computer, you can programme dispensing recipes using simple serial commands. This allows easy and repeatable automation of long processes, such as setting up continuous flow experiments or sequential layer depositions.
Precision Motion, Precise Control

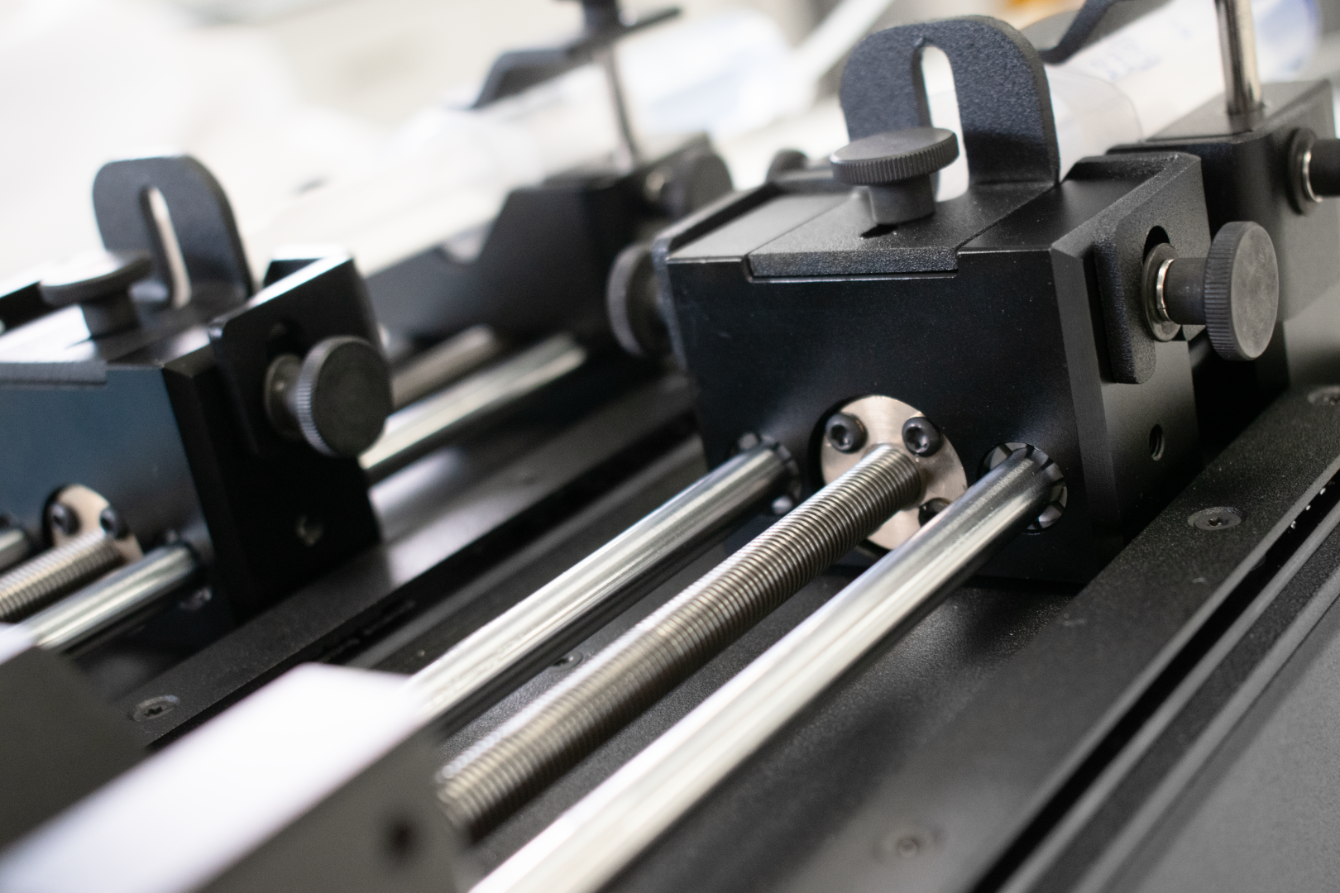

Achieve seamless motion in both syringe pumps and deliver ultra-low volumes of solutions needed for microfluidic experiments, utilizing the high quality stepper motors and driver technology capable of more than 25,600 steps per revolution.
Compatible with Many Syringe Sizes
Our syringe pumps are compatible with a wide range of syringes from 0.5 μl to 60 ml. We recommend solvent-resistant Norm-Ject Disposable Luer Lock Syringes, which are perfect for solution infusion and solution dispensing, including acids and chlorinated solvents.
High Maximum Available Force
The Ossila Dual Syringe Pump design can achieve the same maximum force in infusion and withdrawal modes (500 N). This improved design allows for a wider range of solution viscosities and higher levels of back pressure. This improves pumping through systems with long tubing or small diameters
