High Accuracy Analytical Balances for Precision Weighing
Overview | Specifications | Features | Gallery | In the Box | Accessories | Resources and Support
Ossila's range of analytical balances provide users with a high level of accuracy and precision, with all our analytical balances being capable of measuring as low a 100µg. We offer a range of balances with maximum capacities as high as 220g and the options to select either internal calibration or external calibration based upon your needs.
Our analytical balances are rich with features including a wide range of measurement options including units such a mg, g, oz, and ct, and also part counting. All our analytical balances come with data output via RS232 interface which can be either used for data logging or direct connection to a printer. All of this is operated using a simple to use user interface.
In addition to all these features you also have access to Ossila's in house experts for any questions you may have. At the same time all our products adhere to our strict levels of quality control and benefit from our free 2 year guarantee with all equipment.
Fast Stabilization
Faster measurement of sample weights
High Weight Resolution
Measure small sample weights with confidence
Many Weighing Modes
Weight, parts count, density and many more modes
Two-Year Warranty
Covered by the Ossila Warranty
Specifications
| Minimum Weight Capacity | 10 mg |
|---|---|
| Weight Resolution | 0.1 mg |
| Repeatability | ±0.2 mg |
| Linearity | ±0.2 mg |
| Stabilization Time | 8 s |
| Warm-up Time | 30 - 60 minutes |
| Pan Size | ⌀ 80 mm |
| Power Supply Input Voltage Range | DC9V 2.2A/ AC 110-220V 50Hz |
| Operating Temperature/Humidity | 17.5 °C to 22.5 °C (63.5°F to 72.5°F) |
| Overall Dimensions (W x H x D) | 305mm x 295 mm x 475 mm (12" x 11.6" x 18.7") |
Operating Modes
Our analytical balances come with a wide variety of measurement modes as standard. Below is a table outlining the available modes and the different options available with each.
| Measurement Mode | Options |
|---|---|
| Normal Weighing | Units: milligram, grams, ounces, carat |
| Parts Counting | Reference Quantities: 10, 20, 50, 100, 1000 |
| Percentage Determination | Set Reference Weight |
| Weight Checking | Set Reference Weight |
Communication Settings
The analytical balances can communicate with external equipment via serial communication using an RS232 connection. To ensure compatibility with your printer the baud rate and parity settings must match.
| Settings | Options |
|---|---|
| Baud Rate | 1200, 2400, 4800, 9600* |
| Parity | 8 bits, no parity, 1 stop bit, 1 start bit |
| Data Output | Automatic stable output, Timed Output, Continuous Output, Print on Demand** |
Product Certification and Standards
| CE |
EMC Directive 2014/30/EU RoHS Directive 2011/65/EU |
|---|---|
| UKCA |
Electromagnetic Compatibility Regulations Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations |
Analytical Balance Features
High Precision Sensing
Our analytical balances feature high-precision electromagnetic sensors, delivering superior accuracy and faster response times. These sensors enable measurements down to 10 mg within just a few seconds.
Features Based on Your Needs
Our analytical balances offer a variety of maximum weight capacities, enabling you to choose the range that suits your needs. Additionally, you can opt for scales with either internal or external calibration, allowing you to select the features you require.
Multiple Measuring Modes
The onboard software provides users with the flexibility to choose from various weighing modes based on their needs, including units like grams (g), milligrams (mg), ounces (oz), and carats (ct). Our analytical balances also support part counting, percentage determinations, density measurements, and weight checking, all as standard features.
RS232 Connectivity
The analytical balance can be effortlessly connected to external equipment via RS232. Simply link it to a computer or printer. The baud rate can be adjusted to match the connected device, and data can be output automatically, as a continuous stream, on demand, or via remote command.
In House Certification
All our analytical balances come with a test certificate that verifies their performance across the full range using traceable class E1 weights from 1 mg to 100 g. This ensures that the values you measure are accurate.

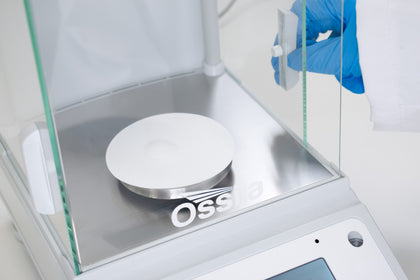

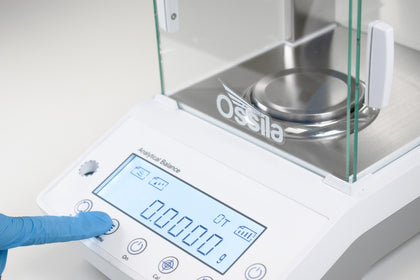

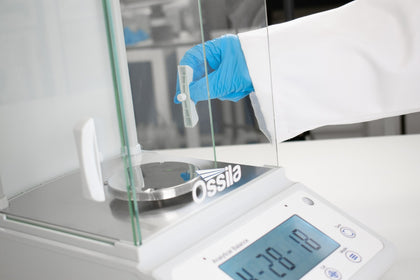

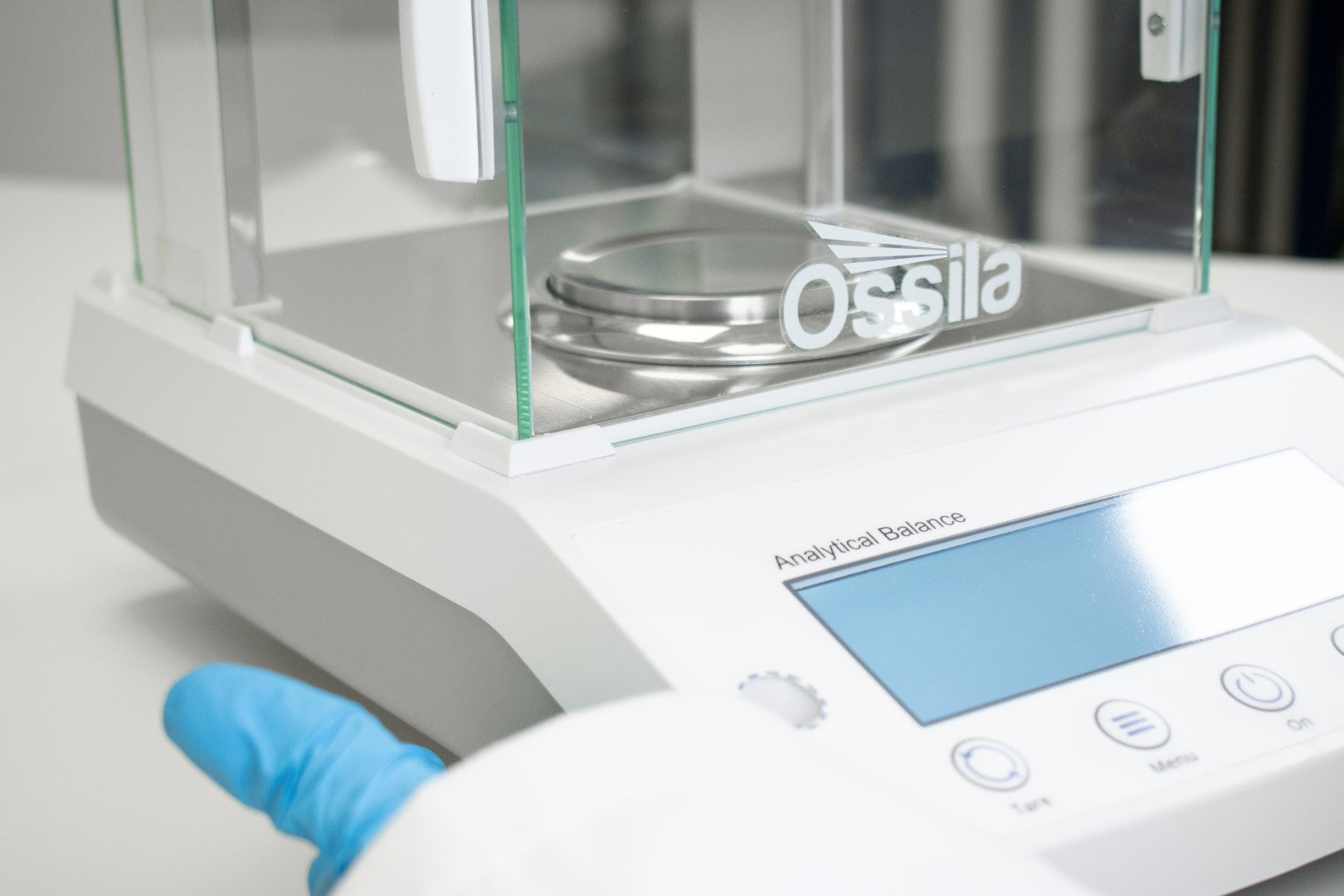

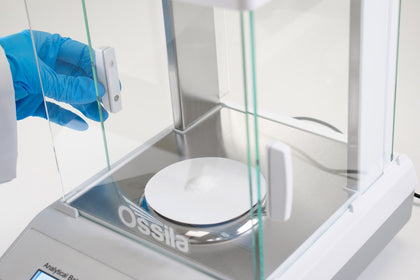

Analytical Balance Gallery
In the Box
- Analytical Balance
- Detachable Control Unit
- Weighing Pan
- Draft Guard
- Power supply (9V, 2.2A)
