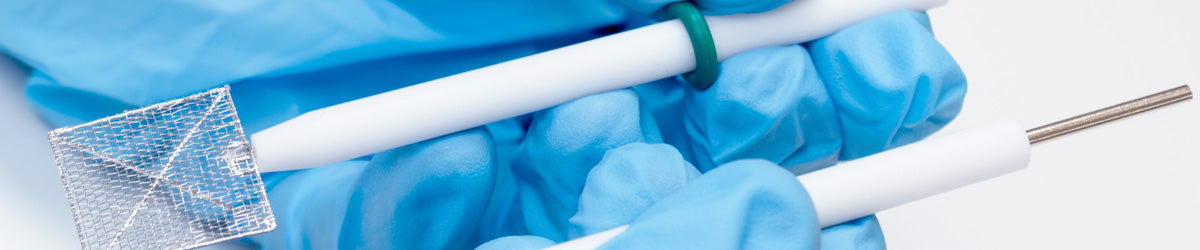

Counter Electrodes
Browse Counter Electrodes | Counter Electrode Materials | Wire, Plate and Mesh Electrodes | Selection Guide | Resources
Counter electrodes, also known as auxiliary electrodes, are a crucial components in three-electrode electrochemical cells. They complete the electrical circuit, allowing current to flow to/from the working electrode. Without a suitable counter electrode, the electrochemical cell would not operate and are essential for techniques like cyclic voltammetry testing fuel cells, supercapacitors, and dye-sensitized solar cells.
When choosing a counter electrode, you should consider:
- Surface Area: The CE surface area should be at least 10x larger than the WE. This maintains low current density and prevent the CE from reaching extreme potentials. Counter electrodes can have various geometries such as standard wire, coil, mesh or plate.
- Material Choice: While Pt is versatile, Graphite is a cost-effective alternative for long-term studies, provided it is monitored for carbon corrosion or particle shedding in strong alkaline/oxidative environments.
- Cost, Stability and Maintenance: The ideal choice of electrode depends on the desired application. Platinum is ideal for multiple applications and is long lasting, so is more expensive. Graphite is lower cost, so can be used in long lasting applications. Here, the electrode can be more expendable.
If using a H-type electrochemical cell, the counter electrode is separated from the working electrode using a membrane to avoid product interference or working electrode contamination.
All the counter electrode suggestions made here for laboratory experiments only.
To maintain the high quality of our working electrodes, consider using our electrode polishing kit.
Browse Counter Electrodes
Related categories: substrates and fabrication, electrochemical cells, photoelectrochemical cells, potentiostat, electrochemistry
Counter Electrode Materials
Platinum (Pt) is the industry standard due to its inertness, thermal stability and resistance to oxidation and high catalytic activity. As a counter electrode, platinum is durable, cost-effective and generally resistant to oxidation, solvents and acids.
However, there is a risk of Pt dissoluving into Pt2+ and Pt4+ if the CE potential reaches the onset of Pt oxidation. These ions can migrate and electrodeposit onto the working electrode, leading to "Pt-poisoning", introducing artefactual activity. This is often seen in HER/ORR/CO2RR studies and can be solved by using a H-Cell with the working electrode held in a different half-cell to the electrode.
Graphite/ Carbon (C) is a widely used alternative, especially for long-duration experiments. Graphite has high electrical conductivity and is significantly cheaper and more earth-abundant than platinum. Graphite also is chemically inert with high temperature tolerance.
For these reasons, graphite is often recommended as the counter electrode when screening the electrocatalytic performance of non-precious metal materials or as an alternative counter electrode when evaluating new electrocatalysts. For example, in hydrogen evolution reaction (HER) catalyst studies, graphite is commonly employed to avoid artefacts due to platinum dissolution and redeposition.
However, graphite can also be subject oxidation, carbon corrosion and particle shredding, graphite particle detachment and by-product diffusion. This can contaminate or deactivate the working electrodes. Compared to platinum, graphite has a more limited stable potential range and lower catalytic activity for certain reactions. Graphite has limited applications compared to platinum electrodes and it’s not advised for use in harsh conditions.
For certain applications, alternative counter electrode materials, such as stainless steel or titanium, may be used. This is particularly valubale when improved mechanical durability or compatibility with specific electrolytes is required. For example, where noble metal contamination must be avoided or where long-term stability in corrosive environments is important. However, their electrochemical behaviour should always be considered carefully, as surface oxidation, passivation, or corrosion under certain potentials may influence the overall cell performance.
CE Shape and Geometry
Surface area is an important part of counter electrode functionality. The surface area of a working electrode should be roughly 10 x the area of the working electrode (10:1 rule) to assure any surface effects at the counter electrode won’t be the limiting factor. Therefore, some counter electrodes employ different shapes to increase surface area of the electrode without increasing the volume of cell. In addition to surface area, the geometric placement and electrochemical cell constraints should be considered, as these factors directly influence current distribution uniformity across the working electrode surface.
Several counter electrode geometries are commonly employed, each offering distinct advantages depending on the application:
-
Straight wire
The simplest and most common design, suitable for low-current applications and standard laboratory cells.
-
Coil
A coiled wire increases the effective surface area relative to a straight wire of the same footprint, without substantially increasing the cell volume. This makes it well-suited for higher current applications where a greater counter electrode area is required to prevent voltage limitations.
-
Plate
A solid planar electrode provides a well-defined, uniform surface area and maintains high electrical conductivity. Plate electrodes are particularly useful in applications requiring high surface area to prevent voltage clipping. However, their solid, opaque geometry may obstruct light pathways, making them less suitable for photosensitive or photoelectrochemical reactions.
-
Mesh
A mesh electrode combines the high surface area of a plate with optical transparency and porosity, allowing light to pass through and electrolyte to circulate freely. This makes mesh electrodes well-suited for photoelectrochemical studies and applications where both high surface area and electrolyte accessibility are important.
Application-Based Selection Guide
| Application | Expected Current | Electrolyte / pH | Recommended Electrode | Justification |
|---|---|---|---|---|
| Analytical Electrochemistry (e.g., CV of Ferrocene) | <1 mA | Aqueous / Organic | Pt Wire/ Pt coil |
Convenient, easy to flame-clean, and chemically inert at low currents. |
| Hydrogen Evolution (HER) | 1-100 mA | Acidic | Graphite Rod |
Avoids Pt contamination. Separate the compartments if Pt mesh or Coil use (ex. H-cell) |
| Oxygen Evolution (OER) | 1-100 mA | Alkaline | Pt Mesh or Ni Foam | Pt is stable. Ni foam is a high-surface-area, low-cost alternative for alkaline media. |
| Oxygen Reduction (ORR) | 1-100 mA | Alkaline | Graphite Rod |
Avoids Pt contamination. Separate the compartments if Pt mesh or Coil use (ex. H-cell) |
| Long-term Stability (Chronoamperometry) | 1-10 mA | All | Graphite Rod |
Minimises cost for extended runs. |
| Corrosion Studies (Tafel / EIS) | <10 mA | Neutral / Acidic | Graphite Rod |
Graphite is standard for ASTM corrosion testing to avoid heavy metal contamination. |
| CO2 Reduction (CO2RR) | 10-100 mA | Aqueous / Aprotic | Pt Mesh/ coil or Au Foil |
High surface area required. Au is often preferred if Pt contamination must be strictly avoided. |
| Electrosynthesis | 100-500 mA | Organic / Aqueous | Large Pt Plate or Carbon Cloth |
Requires maximum surface area to prevent voltage clipping of the potentiostat. |
| Battery Research (Half-cells required) | 100-1000 mA | Aprotic | Li / Na / Mg Metal |
The counter electrode acts as the ion source/sink (Auxiliary) to maintain mass balance. |
