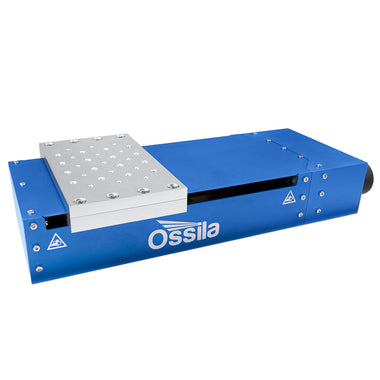

100mm High Precision Stage
High Precision Linear Stages, Lab Equipment, Linear Stages, Price Reductions and Sales
Linear Stage User Manual
Product manual for Ossila Linear Stages.
Motorized Linear Stage Built for High Precision Movement
Improved positioning accuracy and repeatability in your research
Overview | Specifications | Gallery | Software | In the Box | Related Products | Resources and Support
This high precision linear stage, boasting a 100mm travel distance, is perfectly suited for single-axis applications where precision is paramount. Benefit from minimal error and improved repeatability with a C5 ball screw drive. The simple operating system and modular design also allow you to combine multiple stages when needed. With our traceable calibration system, every stage is calibrated according to ISO 230-2:2014 standard.
Plus, our free motion control software seamlessly integrates with your Ossila linear stages. It makes tasks such as homing your stage, moving to absolute positions or by relative distances, and setting the movement speed simple. For even greater flexibility, you have the option to control your stage directly through a serial command library.
Exceptional Precision
The C5 ball screw provides improved positioning control
Minimize Error
Benefit from reduced error in your positioning tasks
Move High Loads
Move 30kg horizontal and 10kg vertical loads
Improve Repeatability
Superior motion and positioning repeatability
Simple Integration
Designed for every laboratory setup
Complete System
Includes a motor, control, and stage in one unit
Free Software
Intuitive and flexible software at no extra cost
Two-Year Warranty
Covered by the Ossila Warranty
Specifications
| Drive | C5 precision ball screw with dual linear rails |
|---|---|
| Travel | 100 mm |
| Maximum speed | 15 mm/s |
| Maximum horizontal load | 30 kg |
| Maximum vertical load | 10 kg |
| Dimensions (L x W x H) | 37 cm x 17 cm x 7 cm |
| Weight | 6 kg |
Motion Specification*
| Maximum Reversal Error | <20 μm |
|---|---|
| Mean Reversal Error | <10 μm |
| Bi-directional Repeatability | <20 μm |
| Forward Repeatability | <5 μm |
| Backward Repeatability | <5 μm |
| Mean Bi-directional Positioning Error | <20 μm |
| Bi-directional Positioning Error | <20 μm |
| Forward Positioning Error | <15 μm |
| Backward Positioning Error | <15 μm |
| Bi-directional Systematic Positioning Error | <20 μm |
| Forward Systematic Positioning Error | <15 μm |
| Backward Systematic Positioning Error | <15 μm |
*Subject to change
Linear Stage Gallery
Software
The Ossila Motion Control Console is designed for effortless management of your linear stage. The software automatically detects which stages are connected and populates the workspace accordingly.
- The Ossila Motion Control Console is completely free. Install the software on as many PCs as you want and benefit from free downloads of future updates.
- With no hidden menus or settings, the software is designed to be simple and easy-to-use
- Get up and running immediately by connecting through USB, with no need for any programming skills.
Software Requirements
| Operating System | Windows 10 or 11 (64-bit) |
|---|---|
| CPU | Dual Core 2 GHz |
| RAM | 4 GB |
| Available Hard Drive Space | 142 MB |
| Monitor Resolution | 1440 x 960 |
| Connectivity | USB |
In the Box
- 100mm High Precision Linear Stage
- Power supply
- USB cable
- Test report
