Consistent Positioning Across Longer Distances
Accurately manipulate equipment and materials, even at the extremes of your linear stage
Overview | Specifications | Gallery | Software | In the Box | Related Products | Resources and Support
With a 200mm travel distance and a precision C7 ball screw, this stage offers accurate, long-travel positioning control along the one axis. For more advanced positioning tasks along multiple axes, combine and operate two or three Ossila stages with ease. Calibrated according to ISO 230-2:2014 standard with our traceable calibration system.
With our free motion control software, take control of your linear stage. You can easily home your stage, move to absolute positions, move by relative distances, and set the movement speed. For even greater flexibility, control your stage directly with a serial command library.
Achieve Precision
Precise and accurate motion control
Extended Travel
Motion control across a range of 200mm
Move High Loads

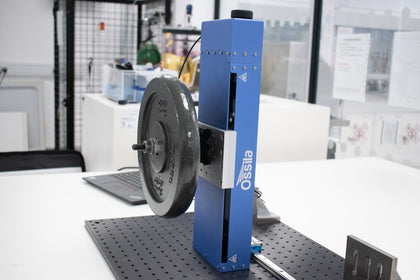

Move 30kg horizontal and 10kg vertical loads
Benchtop Applications
Extended travel system suitable for every lab
Simple Integration
Designed for every laboratory setup
Complete System
Includes a motor, control, and stage in one unit
Free Software
Intuitive and flexible software at no extra cost
Two-Year Warranty
Covered by the Ossila Warranty
Specifications
| Drive | C7 precision ball screw with dual linear rails |
|---|---|
| Travel | 200 mm |
| Maximum speed | 15 mm/s |
| Maximum horizontal load | 30 kg |
| Maximum vertical load | 10 kg |
| Dimensions (L x W x H) | 47 cm x 17 cm x 7 cm |
| Weight | 7 kg |
Motion Specification*
| Maximum Reversal Error | <40 μm |
|---|---|
| Mean Reversal Error | <20 μm |
| Bi-directional Repeatability | <40 μm |
| Forward Repeatability | <10 μm |
| Backward Repeatability | <10 μm |
| Mean Bi-directional Positioning Error | <20 μm |
| Bi-directional Positioning Error | <40 μm |
| Forward Positioning Error | <30 μm |
| Backward Positioning Error | <30 μm |
| Bi-directional Systematic Positioning Error | <40 μm |
| Forward Systematic Positioning Error | <30 μm |
| Backward Systematic Positioning Error | <30 μm |
*Subject to change

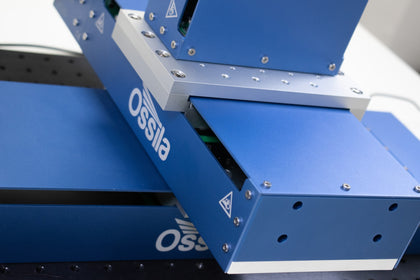

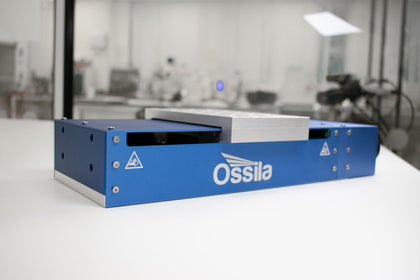

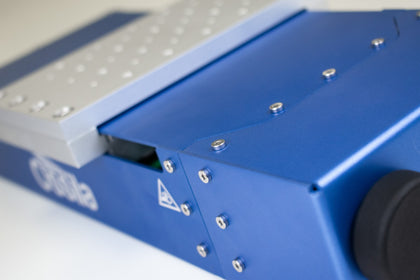

Linear Stage Gallery
Software

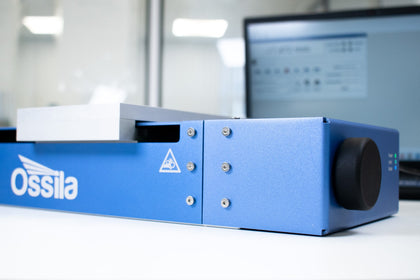

The Ossila Motion Control Console works to seamlessly control your linear stage. The software automatically detects which stages are connected and populates the workspace accordingly.
- The Ossila Motion Control Console is completely free. Install the software on as many PCs as you want and download future updates for free.
- The software is designed to be simple and easy-to-use, with no hidden menus or settings.
- Connect via USB and get started straight away, even without any programming knowledge.
Software Requirements
| Operating System | Windows 10 or 11 (64-bit) |
|---|---|
| CPU | Dual Core 2 GHz |
| RAM | 4 GB |
| Available Hard Drive Space | 142 MB |
| Monitor Resolution | 1440 x 960 |
| Connectivity | USB |
In the Box
- 200mm Linear Stage
- Power supply
- USB cable
- Test report
