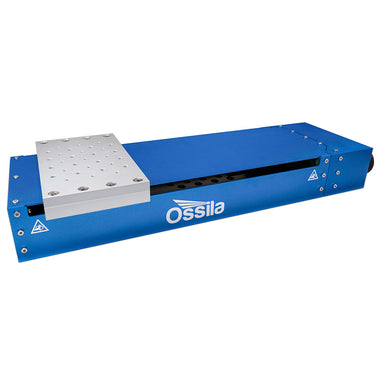

200mm High Precision Stage
High Precision Linear Stages, Lab Equipment, Linear Stages, Long Travel Linear Stages, Price Reductions and Sales
Linear Stage User Manual
Product manual for Ossila Linear Stages.
Combine High Precision Positioning with Long Travel Motion
Improved positioning accuracy and repeatability in your research
Overview | Specifications | Gallery | Software | In the Box | Related Products | Resources and Support
Our high precision linear stage, with a 200mm travel distance, is ideal for single-axis applications in which precision and increased distance are necessary. Benefit from minimal error and improved repeatability with a C5 ball screw drive. Plus, the modular design easily combines multiple stages when needed, while keeping operation and integration into your setup simple. Every stage is calibrated according to ISO 230-2:2014 standard with our traceable calibration system.
Our free motion control software includes various control features such as homing the stage, navigating to specific absolute positions, adjusting movement by relative distances, and selecting the speed of movement. This enables straightforward management of your linear stage. For added flexibility, you can operate your stage using a serial command library instead.
Exceptional Precision
The C5 ball screw provides improved positioning control
Minimize Error
Benefit from reduced error in your positioning tasks
Move High Loads
Move 30kg horizontal and 10kg vertical loads
Improve Repeatability
Superior motion and positioning repeatability
Extended Travel
Motion control across a range of 200mm
Complete System
Includes a motor, control, and stage in one unit
Free Software
Intuitive and flexible software at no extra cost
Two-Year Warranty
Covered by the Ossila Warranty
Specifications
| Drive | C5 precision ball screw with dual linear rails |
|---|---|
| Travel | 200 mm |
| Maximum speed | 15 mm/s |
| Maximum horizontal load | 30 kg |
| Maximum vertical load | 10 kg |
| Dimensions (L x W x H) | 47 cm x 17 cm x 7 cm |
| Weight | 7 kg |
Motion Specification*
| Maximum Reversal Error | <20 μm |
|---|---|
| Mean Reversal Error | <10 μm |
| Bi-directional Repeatability | <20 μm |
| Forward Repeatability | <5 μm |
| Backward Repeatability | <5 μm |
| Mean Bi-directional Positioning Error | <20 μm |
| Bi-directional Positioning Error | <20 μm |
| Forward Positioning Error | <15 μm |
| Backward Positioning Error | <15 μm |
| Bi-directional Systematic Positioning Error | <20 μm |
| Forward Systematic Positioning Error | <15 μm |
| Backward Systematic Positioning Error | <15 μm |
*Subject to change
Linear Stage Gallery
Software
The Ossila Motion Control Console ensures effortless operation of your linear stage. Its software intuitively identifies the connected stages and automatically adjusts the workspace to match.
- The Ossila Motion Control Console is available with your linear stage for free. Install the software on as many PCs as you want and download future updates for free.
- The software is designed to be simple and easy-to-use, with no hidden menus or settings.
- Simply connect via USB and you're ready to go, even without any programming knowledge.
Software Requirements
| Operating System | Windows 10 or 11 (64-bit) |
|---|---|
| CPU | Dual Core 2 GHz |
| RAM | 4 GB |
| Available Hard Drive Space | 142 MB |
| Monitor Resolution | 1440 x 960 |
| Connectivity | USB |
In the Box
- 200mm High Precision Linear Stage
- Power supply
- USB cable
- Test report
