Broadband White Light Source

Equipment Accessories, Spectroscopy Equipment

Affordable broadband white light for visible optical spectroscopy

Output light over the wavelength range 360 nm – 900 nm

Overview | Specifications | Related Products | Resources and Support

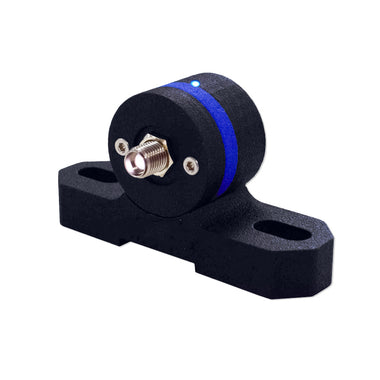

The Ossila Broadband White Light Source is a USB-C powered LED device that outputs light over the wavelength range 360 nm – 900 nm. Ultraviolet and blue LEDs are combined on a single die, and coated with phosphors with emission extending into the near infrared. This single light source allows optical spectroscopy measurements over the entire visible range.

Designed for use with the Ossila USB Spectrometer and our range of spectroscopy equipment and accessories, the broadband white light source can be used in free space arrangement or connected to a transmission holder or cuvette holder with an optical fiber. It can also be bolted to any standard metric or imperial optical table or optical breadboard plate.

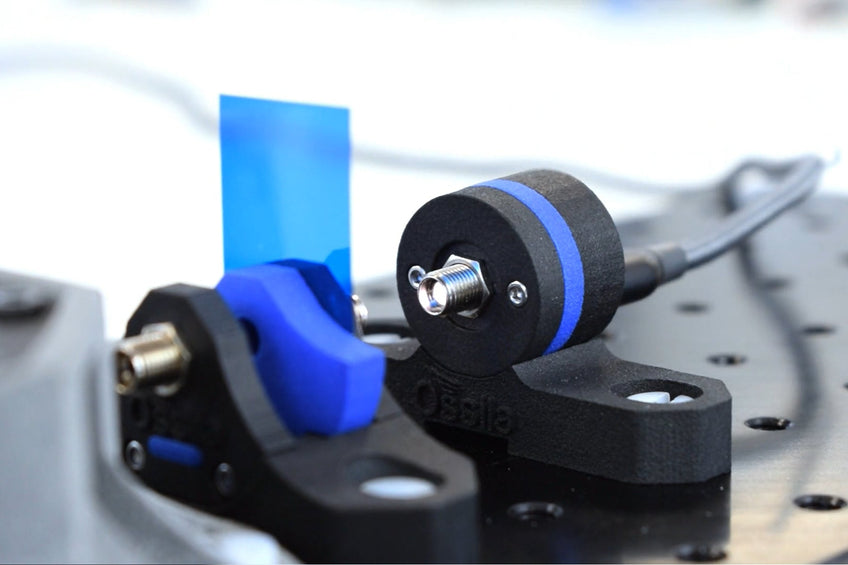

Broadband white light source and transmission holder bolted to an optical breadboard plate — The broadband white light source and transmission holder can be bolted to an optical breadboard

Specification

Dimensions (D x W x H)	30 mm x 70 mm x 40 mm
Weight	25 g
Wavelength Range	360 nm - 900 nm (approx.)
Optical Connection	SMA 905 fibre or free space
Power	USB type-C (5 V, 70 mA)
Representative Light Output*
Spectrum with No Intensity Correction*

Spectrometer software showing white light source spectrum — Spectrometer software showing the spectrum for the Ossila Broadband White Light Source as recorded by the Ossila USB Spectrometer*

Spectrometer software in dark mode — Spectrometer software showing the spectrum for the Ossila Broadband White Light Source as recorded by the Ossila USB Spectrometer*

* May vary from unit to unit
