Infrared Light Source
Infrared Light Source Manual
Product manual for Ossila LED Light Sources
Infrared Wavelengths from 700 nm to 980 nm
High power LED light sources for a variety of optical applications
Overview | Specifications | Related Products | Resources and Support
Infrared (IR) light sources from Ossila are available in a range of wavelengths from 700 nm – 980 nm. These light sources are useful in IR spectroscopy.
Compatible with the Ossila Optical Spectrometer and our range of optical spectroscopy tools, you can complete your experimental setup with these IR light sources. You have the flexibility to use our USB-C powered light sources in a free space arrangement, connected to a transmission holder, or linked to an optical fiber. They can also be bolted to any standard metric/imperial optical table or optical breadboard plate.
For more comprehensive applications, you can buy an LED light source set covering all the infrared wavelengths.
Specifications
| Dimensions (D x W x H) | 30 mm x 70 mm x 40 mm |
|---|---|
| Weight | 25 g |
| Optical Connection | SMA 905 fiber or free space |
| Power | USB type-C (5 V, 70 mA) |
Optical Specifications

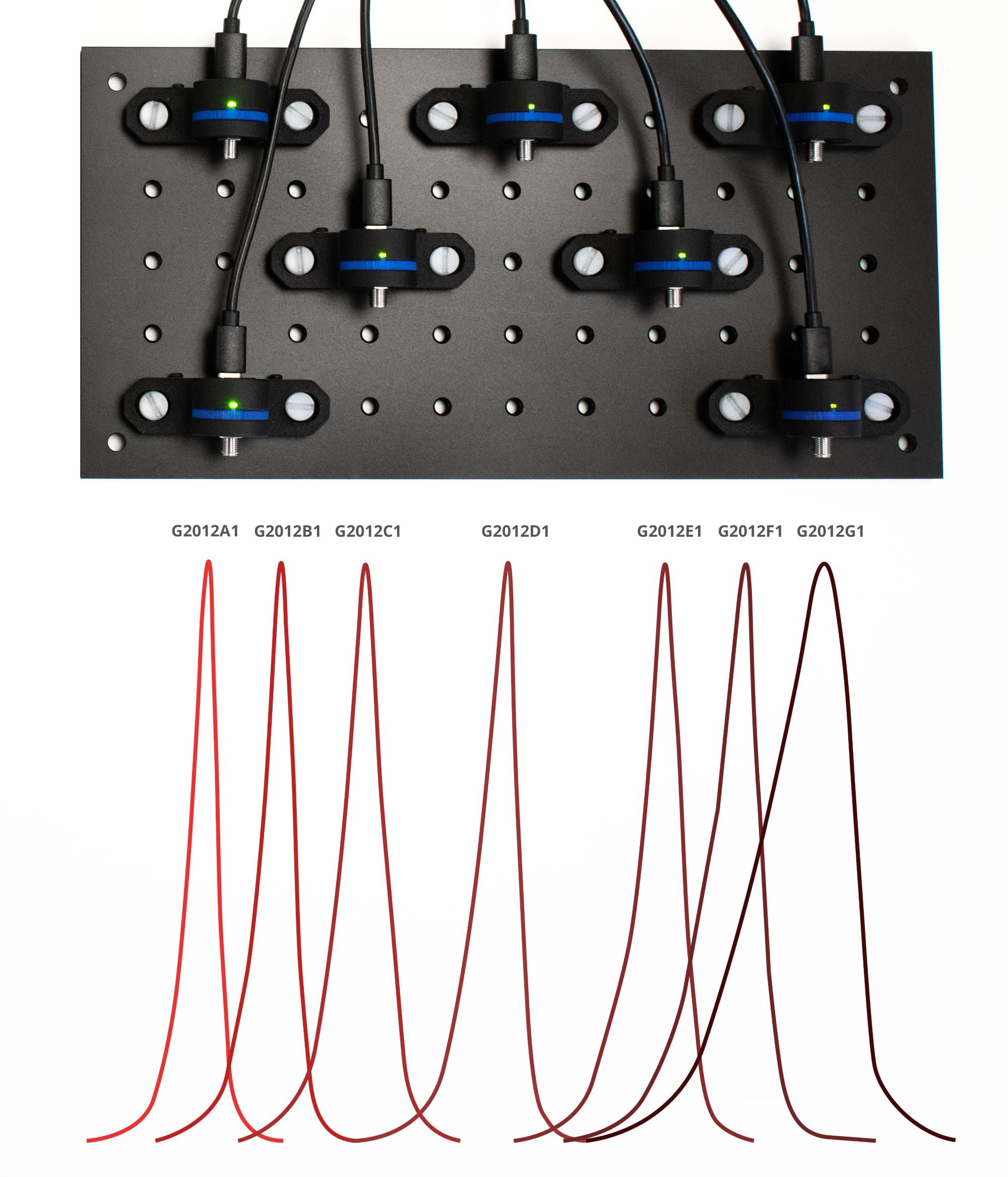

| Product Code | Wavelength* | Optical Power |
|---|---|---|
| G2012A1 | 700 nm | >23 mW |
| G2012B1 | 740 nm | >15 mW |
| G2012C1 | 770 nm | >5 mW |
| G2012D1 | 800 nm | >16 mW |
| G2012E1 | 850 nm | >21 mW |
| G2012F1 | 910 nm | >19 mW |
| G2012G1 | 980 nm | >20 mW |
* ±15 nm
