Spectrometer vs Spectrophotometer
Spectrometers and spectrophotometers are two commonly used instruments in scientific research, particularly in the field of spectroscopy. The terms "spectrometer" and "spectrophotometer" are frequently used interchangeably, especially when discussing optical spectrometers.
Both instruments can split light into its constituent wavelengths and measure intensity at specific wavelengths. Typically, spectrophotometers are used in biological, life sciences and chemistry, where as spectrometer (or optical spectrometer) is the term used in physical sciences.
One key difference is that in spectrophotometers, the diffraction grating, used to split incoming light into it's constituent wavelengths, is rotated. Light of specific wavelengths can be directed towards a single pixel detector. However, spectrometers use a fixed diffraction grating. The split light is directed towards a larger detector, which measures the intensity of all wavelengths simultaneously. Spectrophotometers tend to be large, enclosed units. A spectrometer can is much smaller and can be integrated with other optics components on an optical bench.
USB Spectrometer
Spectrometer Definition vs Spectrophotometer Definition
"Spectrometer" is a general term for a piece of equipment that can separate and measure spectral components of a "physical phenomenon". Spectrometers can be designed to measure various phenomena such as electromagnetic light, mass, or nuclear magnetic resonance. In this article, we will refer to optical spectrometers as spectrometers for comparison purposes.
Our research shows that there is not one firm definition for a spectrophotometer, and its usage or purpose varies. The word spectrophotometer comes refers to both a spectrum ("spectro") and light ("photo"). One definition states that a spectrophotometer is an instrument that measures the intensity of light that is absorbed by passing through a sample. One key distinction is that all spectrophotometers contain a spectrometer or incorporate a spectrometer within their design.
Applications and Usage
As stated, the term spectrometer can be used interchangeably with spectrophotometer. Some definitions describe a spectrophotometer as a spectrometer used for specific absorbance measurements specifically. Another says that spectrophotometry is the act of measuring a material with a spectrometer.
Spectrophotometers are often associated with life sciences, medicine, and biological applications. They are commonly used to measure absorbance or transmittance of light at specific wavelengths, particularly in biosensors, DNA analysis, and biological reaction studies. By measuring these properties, spectrophotometers can determine the concentration or optical density of a material or a biological sample.
Spectrometers, on the other hand, are frequently employed in chemical and physical sciences. They are used to measure the intensity of light at different wavelengths, providing valuable information about the distribution of wavelengths in a given sample or light source.
The term "spectrophotometer" is sometimes used to describe a handheld device specifically designed for color measurement. These spectrophotometers are used in a field of spectroscopy called colorimetry, which focuses on quantitatively measuring the color of light. Taking accurate color measurement is very important for various industries, such as in designing pigments and dyes, when characterising LEDs and within the food industry.
Spectrometer Components vs Spectrophotometer Components
While spectrometers and spectrophotometers are both designed to measure light across different wavelengths, their internal components reflect their differing functionalities and applications.
Spectrometers typically consist of the following key components:
- Entrance Slit – Narrows incoming light to improve resolution. Diffraction Grating (Fixed) – Disperses the light into its component wavelengths.
- Routing Optics – To direct the incoming and dispersed light towards the detector detector.
- Detector Array – A multi-pixel sensor (e.g., CCD or CMOS) that captures the full spectrum simultaneously.
This allows spectrometers to record an entire spectrum in a single acquisition, making them ideal for real-time monitoring. These are often compact systems (like the USB spectrometer), and integration into optical benches or experimental setups.

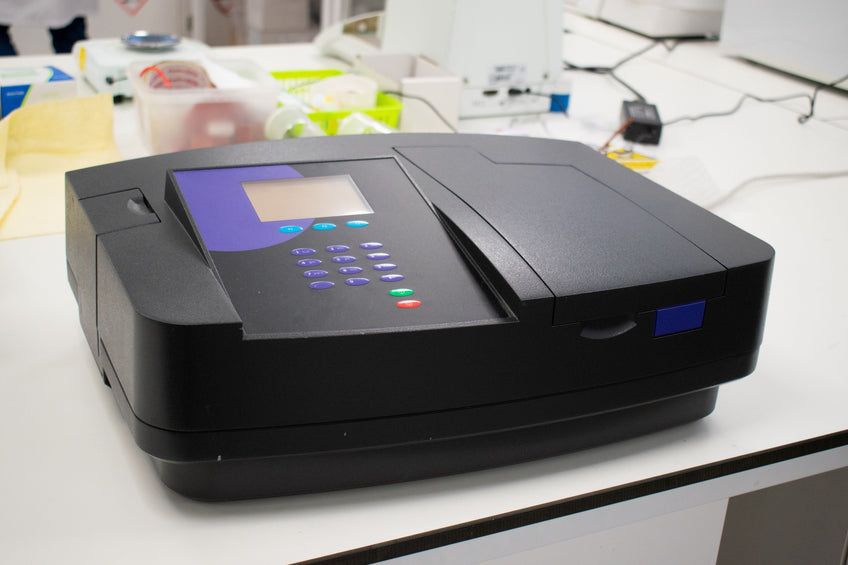

Spectrophotometers are generally larger units, which contain the following components:
- Light Source – Provides a stable, broad-spectrum output.
- Monochromator (with Rotating Grating or Prism) – Selects individual wavelengths of light by rotating the grating or prism.
- Sample Holder – Cuvette holder for liquid samples, or film holder for thin films
- Single-Pixel Detector – Measures the intensity of light transmitted or absorbed at the selected wavelength.
This configuration enables precise measurements of absorbance or transmittance at discrete wavelengths, which is particularly useful in analytical chemistry and biological applications.
In essence, spectrometers are built for speed and compactness, capturing full spectra at once, while spectrophotometers are optimized for high-accuracy measurements at specific wavelengths.
Key Differences Between Spectrometer and Spectrophotometer
- Design and Modularity: Spectrophotometers are typically self-contained units with fixed components, including a light source and optical components. In contrast, spectrometers are often modular and can be used in combination with a range of sample holders and light sources. Spectrometers, like our USB Spectrometer, are commonly part of modular setups where light sources are sold separately.
- Sample Handling: Spectrophotometers are designed for specific purposes and sample types, often requiring designated sample holders. They are usually designed to measure liquid samples in standard cuvettes like the Ossila Quartz cuvette. Spectrometers, on the other hand, can accommodate different sample cells and configurations, allowing measurements under various conditions, including different temperatures.
Choosing the Right Instrument
When selecting between a spectrometer and a spectrophotometer, consider the specific requirements of your application. If you are taking one measurement consistently, e.g., you are measuring absorbance or transmittance of light at specific wavelengths in biological samples, a spectrophotometer may be more suitable for your needs. For broader measurements of light intensity across various wavelengths or applications in chemistry and physics, a spectrometer would be a better choice.
Understanding the distinctions between spectrometers and spectrophotometers will help you make an informed decision and ensure that your instrument meets your research needs.
