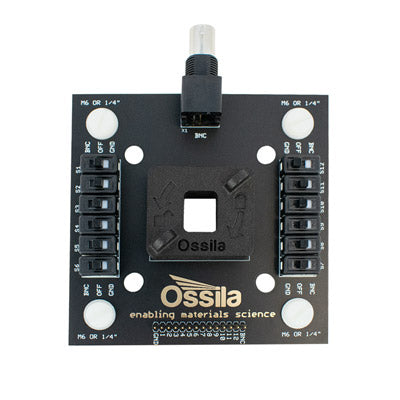

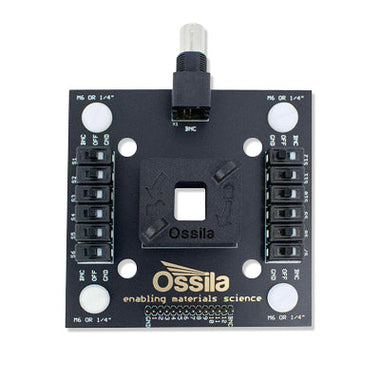

Push-Fit Test Board for 20 x 15 mm Substrates
Two year warranty
Product Code P2008A1
Price $481 ex. VAT
$ USD

How to Order | Shipping

Easy Electrical Connection and Measurement

Make electrical connections to the photovoltaic (6/8 pixel) substrates without electrical connection legs

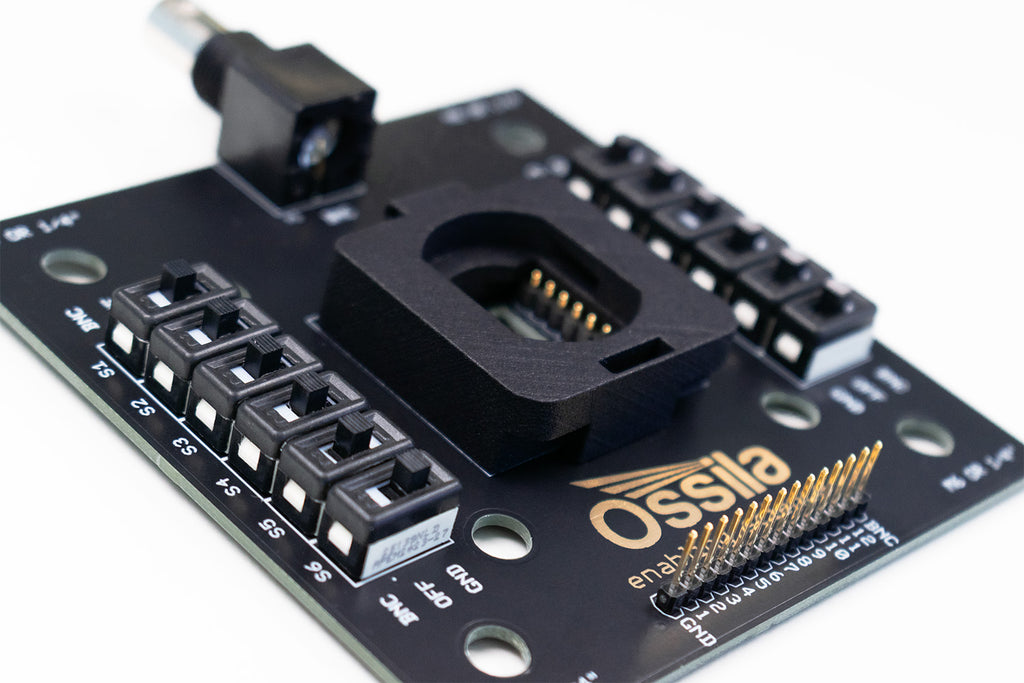

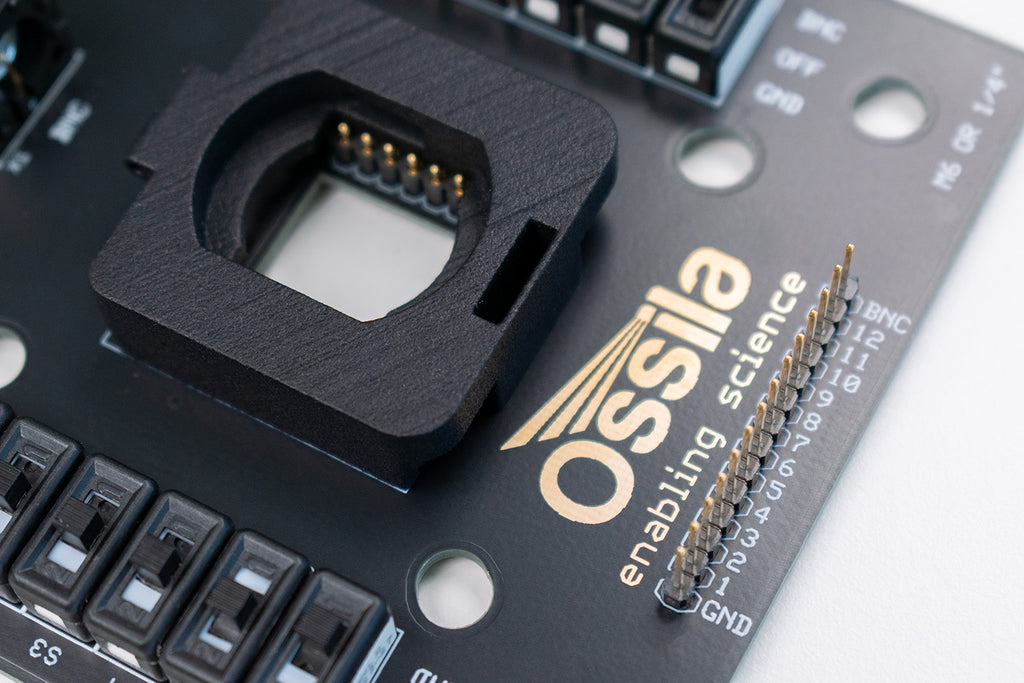

A gold coated spring-loaded push fit system is used to make connection to the ITO contacts without the need for electrical connection legs. A push-fit bracket printed to a 0.1 mm tolerance ensures the substrates are aligned properly to avoid accidental pixel cross-talk. Electrical switches enable simple control of pixel selection while a BNC connector allows for easy connection to test equipment.

The 8-pixel design allows you to create either eight small individual pixels or a single large pixel.

Please note that while this can simplify testing and measurement (compared to using electrical connection legs and our ZIF test board), it requires the substrate sides to be wiped free of organic layers.

Looking for the Ossila Push Fit Test Board for S101 Substrates (P2007A2)?

We have discontinued our generation I and generation II substrates and masks. Contact us for more information, support with generation I and II products, or for help migrating to the new system.

Specifications

Designed for use with Ossila's photovoltaic substrate (8 pixel) system (S211/S213) or pixelated cathode (6 pixel) substrate system (S171/S173), this test board allows for easy electrical connection and measurement.

The window in the centre allows for experiments where optical access is required from both sides. Meanwhile the M4, M6 and 1/4" mounting holes makes mounting on a variety of optical benches and other equipment quick and simple (insulating plastic M6 bolts included).

Used for a wide variety of experiments including:

  • Photovoltaic current-voltage (IV) sweeps
  • Photovoltaic external quantum efficiency measurements
  • Photovoltaic lifetime testing
  • OLED current-voltage-light (IVL) sweeps

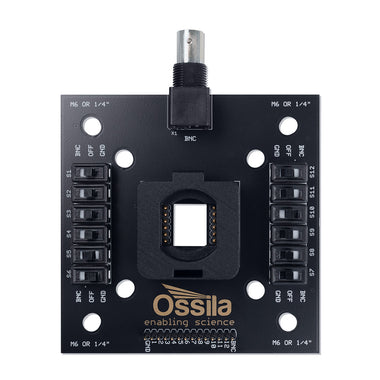

6/8 Pixel push fit test board features
6/8 Pixel Push Fit Test Board Features.
  • BNC socket for easy connection to test equipment

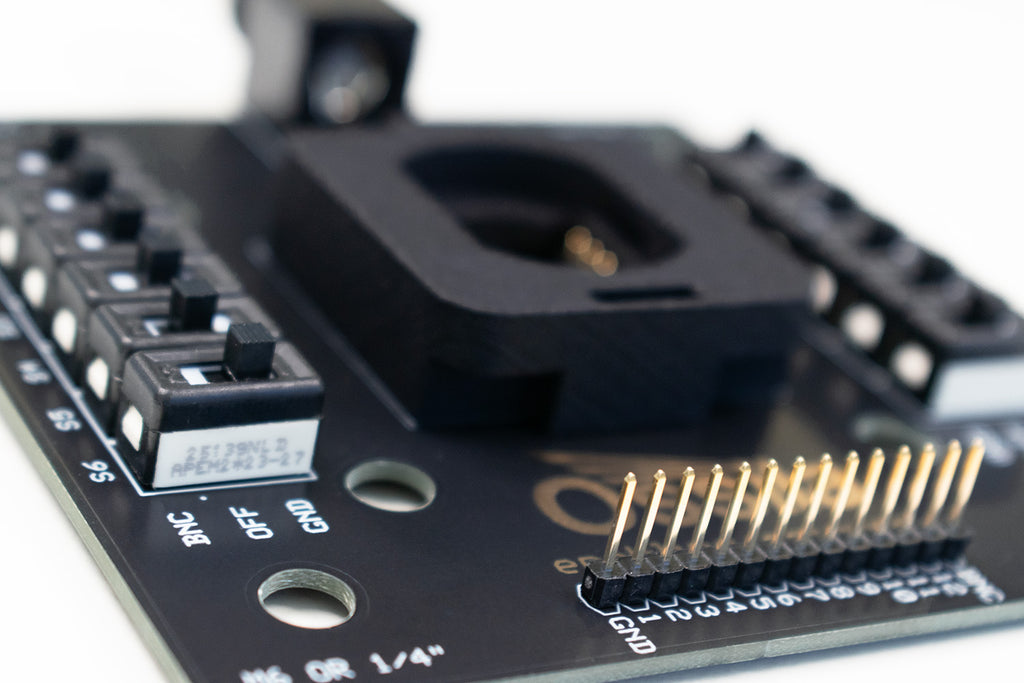

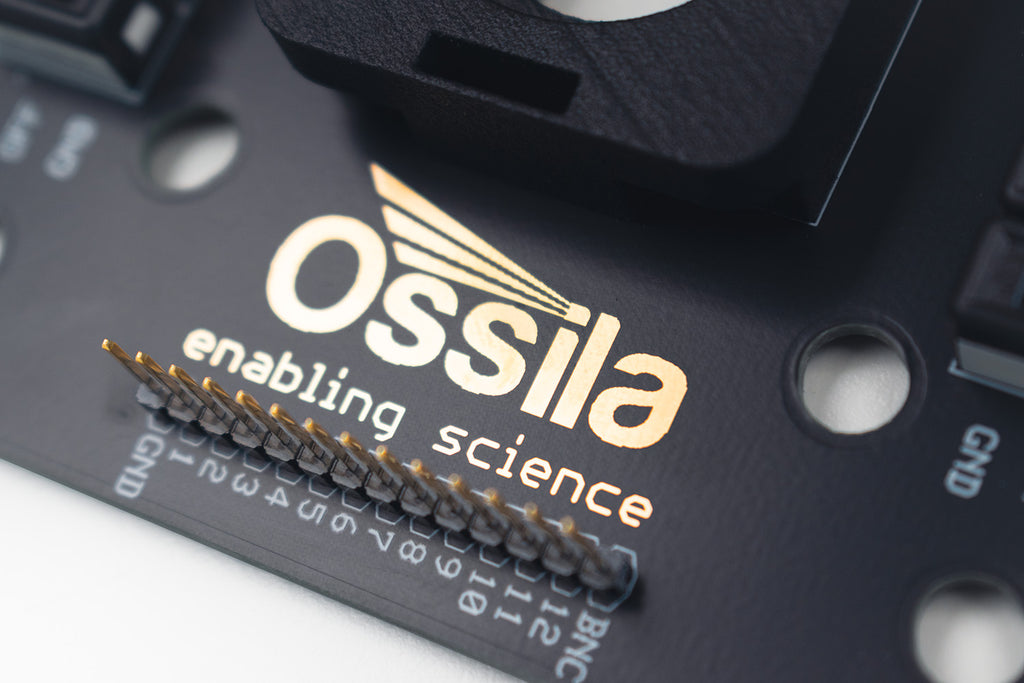

  • Header pins for easy electrical access (great for initial tests/checks with a multimeter)
  • Push-fit bracket to easily connect and remove devices made using Ossila's standard substrates
  • Window to allow optical access from both sides (for experiments such as pump-probe excitement with simultaneous electrical measurements)

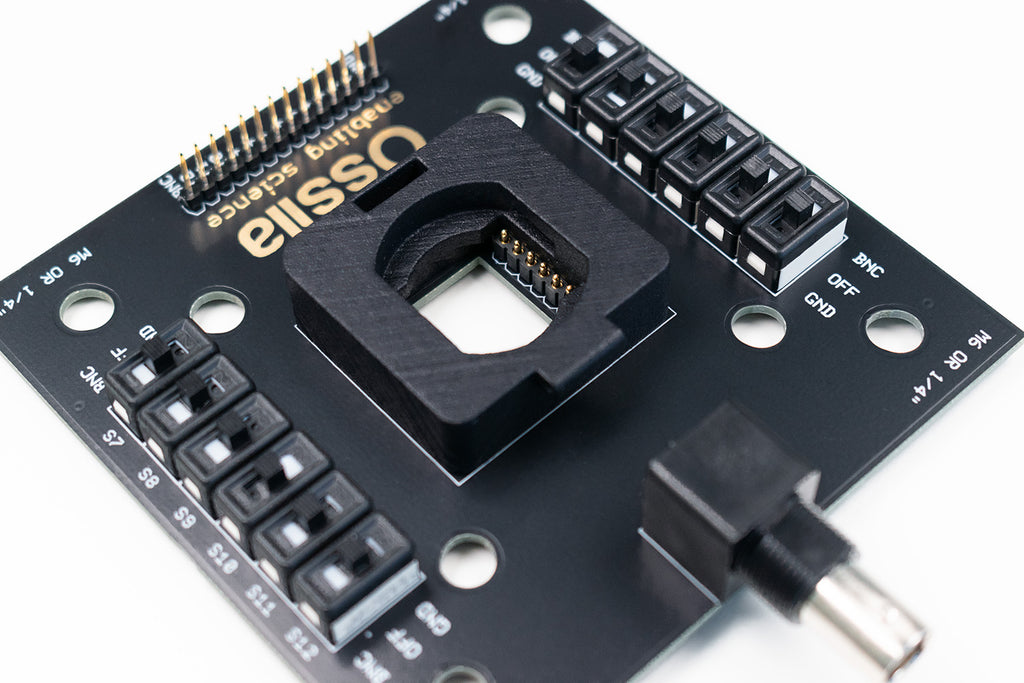

  • Connection switches (can use to switch all pixels to either BNC signal or ground)
  • Oval bolt holes to accommodate either M6 bolts or 1/4" bolts for mounting on standard metric or imperial optical benches (insulating plastic M6 bolts included)
