Cz-DPS

CAS Number 733038-89-6

Blue Dopant Materials, High Purity Sublimed Materials, Materials, OLED Materials, Semiconducting Molecules, TADF Materials

MSDS

Cz-DPS, bipolar host and blue dopant

Available in sublimed grade for TADF-OLED devices

Cz-DPS, namely 9,9'-(Sulfonylbis(4,1-phenylene))bis(9H-carbazole), is consisted of two electron-donating carbazolyl moieties on both end of the molecule and one electron-withdrawing diphenylsulfone centre unit. HOMO of 9,9'-(Sulfonylbis(4,1-phenylene))bis(9H-carbazole) is localised on the donor moieties extending to the diphenylsulfone unit, whereas LUMO of that is predominantly localised on the diphenylsulfone unit.

Cz-DPS is normally used as a bipolar host for TADF dopant or it could be used as a blue dopant itself.

General Information

CAS Number	733038-89-6
Chemical Formula	C₃₆H₂₄N₂O₂S
Molecular Weight	548.7 g/mol
Absorption	λ_max 340 nm in film [1]
Fluorescence	N/A
HOMO/LUMO	HOMO = 5.61 eV, LUMO = 2.38 eV [1]
Full Name	9,9'-(Sulfonylbis(4,1-phenylene))bis(9H-carbazole)
Synonyms	p-CzDPS, Bis[4-(9H-carbazole-9-yl)phenyl]sulfone Bis[4-(9-H-carbazole)phenyl]Sulfone
Classification / Family	Carbazole derivatives, Diphenylsulfones, TADF materials, Blue dopant, TADF Host, Sublimed materials

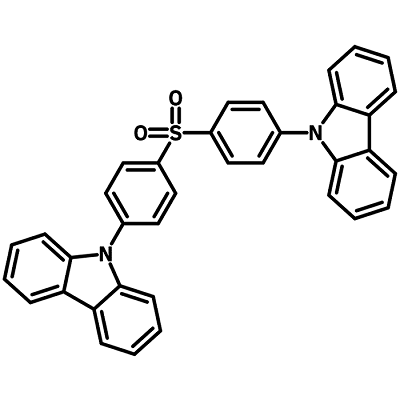

Chemical Structure

Product Details

Purity	Sublimed >99.0% (HPLC)
Melting Point	T_m = 224 °C, T_g = 121 °C, TGA = 405 °C (5% weight loss)
Appearance	White powder/crystals

*Sublimation is a technique used to obtain ultra pure-grade chemicals. For more details about sublimation, please refer to the Sublimed Materials.

Device Structure

Device Structure	ITO/HATCN (4 nm)/TCTA (40 nm)/mCP (10 nm)/4CzIPN:Cz-DPS (5wt%, 30 nm)/TSPO1 (4 nm)/TPBi (45 nm)/LiF (0.6 nm)/Al [1]
Colour	Bluish-green
Max. Current Efficiency	20.3 cd/A
Max. EQE	7.6%
Max. Power Efficiency	13.0 Im/W

MSDS Documentation

Cz-DPS MSDS sheet

Pricing

Grade	Order Code	Quantity	Price
Sublimed (>99.0% purity)	M2385A1	250 mg	£360
Sublimed (>99.0% purity)	M2385A1	500 mg	£620
Sublimed (>99.0% purity)	M2385A1	1 g	£1050

Literature and Reviews

Diphenylsulfone-based hosts for electroluminescent devices: Effect of donor substituents, O. Bezvikonnyi et al., Dyes Pigm., 175, 108104 (2020); DOI: 10.1016/j.dyepig.2019.108104.
A novel class of photoinitiators with a thermally activated delayed fluorescence (TADF) property, M. Bouzrati-Zerelli et al., New J. Chem., 42, 8261 (2018); DOI: 10.1039/c7nj04394e.
Intramolecular Electronic Coupling for Persistent Room-Temperature Luminescence for Smartphone Based Time-Gated Fingerprints Detection, D. Tian et al., Mater. Horiz., 6, 1215-1221 (2019); DOI: 10.1039/C9MH00130A.
