eC9-2Cl for devices with efficiencies approaching 19%
Sister compound to BTP-eC9, available from £360
Specifications | Pricing and Options | MSDS | Literature and Reviews
eC9-2Cl is another highly efficient non-fullerene acceptor that belongs to the Y6 acceptors family. With a fused thienothienopyrrolo-thienothienoindole (TTP-TTI) core, eC9-2Cl is a sister compound to BTP-eC9 with two less chlorine atoms on the peripheral benzene end groups. Comparing to BTP-eC9, the absorption of eC9-2Cl is blue shifted for about 20 nm at its maximum absorption with elevated HOMO/LUMO energy levels.
Device efficiency approaching 19% (certified value of 18.7%) has been achieved by using PBQx-TF as the polymer donor and eC9-2Cl and F-BTA3 as a mixed electron acceptors in single junction organic photovoltaic cells.
High efficient non-fullerene acceptor
With highly conjugated core
Enhanced solubility
with butyloctyl alkyl chains
Worldwide shipping
Quick and reliable shipping
Green energy materials
Processable in non-halogenated solvents
Device structure: ITO/PEDOT:PSS/PBQx-TF:eC9-2Cl:F-BTA3 (1:1.2:0.2)/PNDIT-F3N-Br/Al
| Thickness (nm) | VOC (V) | JSC (mA cm-2) | FF (%) | PCE (%) |
| 100 | 0.879 | 26.7 | 80.9 | 19.0 |
General Information
| CAS Number | N/A |
| Chemical Formula | C86H96Cl2N8O2S5 |
| Purity | ≥98% (1H NMR) |
| Full Name | 2,2'- [[12,13-Bis(2-butyloctyl)-12,13-dihydro-3,9-dinonylbisthieno[2'',3'':4',5']thieno[2',3':4,5]pyrrolo[3,2-e:2',3'-g][2,1,3]benzothiadiazole-2,10-diyl]bis[methylidyne(2 or 3-chloro-3-oxo-1H-indene-2,1(3H)-diylidene) ]]bis[propanedinitrile] |
| Molecular Weight | 1504.96 g/mol |
| HOMO / LUMO | HOMO = -5.57 eV, LUMO = -3.74 eV [1] |
| Solubility | Chloroform, chlorobenzene and dichlorobenzene |
| Form | Dark blue powder/crystal |
| Synonyms | BTP-eC9-2Cl, eC9-Cl |
| Classification / Family | BTP series NFAs, n-type non-fullerene electron acceptors, Organic semiconducting materials, Low band-gap small molecule, Small molecular acceptor, Organic photovoltaics, Polymer solar cells, NF-PSCs |

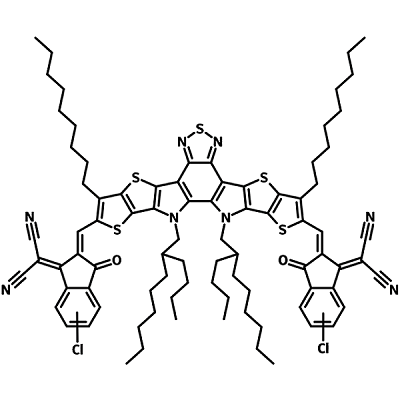

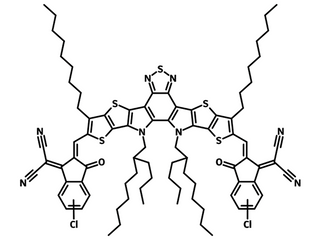

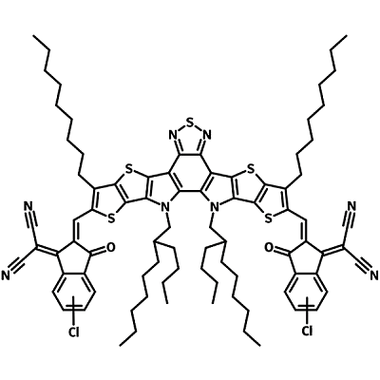

Chemical Structure
MSDS Documentation
eC9-2Cl MSDS sheetPricing
| Batch | Quantity | Price |
| M2301A1 | 100 mg | £360 |
| M2301A1 | 250 mg | £720 |
| M2301A1 | 500 mg | £1250 |
| M2301A1 | 1 g | £2300 |
| M2301A1 | 5 g / 10 g* | Please contact us for details |
*for 5 - 10 grams order quantity, the lead time is 4 - 6 weeks
Literature and Reviews
-
Single-Junction Organic Photovoltaic Cell with 19% Efficiency, Y Cui et al., Adv. Mater., 2102420 (2021); DOI: 10.1002/adma.202102420..
- Self-assembled Monolayer Enables Hole Transport Layer-Free Organic Solar Cells with18% Efficiency and Improved Operational Stability, Y. Lin et al., ACS Energy Lett., 5, 9, 2935–2944 (2020); DOI: 10.1021/acsenergylett.0c01421.
- Chlorination: An Effective Strategy for High-Performance. Organic Solar Cells, Q. Zhao et al., Adv. Sci., 7, 2000509 (2020); DOI: 10.1002/advs.202000509.
