FIrPic

CAS Number 376367-93-0

Blue Dopant Materials, Dopant Materials, High Purity Sublimed Materials, Materials, OLED Materials, Semiconducting Molecules

MSDS

FIrPic, highly efficient phosphorescent dopant material for OLED devices

High purity and available online for priority dispatch

Bis[2-(4,6-difluorophenyl)pyridinato-C2,N](picolinato)iridium, abbreviated as FIrPic, F2IrPic or Ir(difppy)2(pic), is one of the most investigated bis-cyclometallated iridium complexes, in particular in the context of organic light emitting diodes (OLEDs). This is because of its attractive sky-blue emission, high emission efficiency, and suitable energy levels as a phosphorescent dopant material.

General Information

CAS number	376367-93-0
Chemical formula	C₂₈H₁₆F₄IrN₃O₂
Molecular weight	694.66 g/mol
Absorption	λ_max 256 nm (DCM)
Fluorescence	λ_em 468 nm, 535 nm (DCM)
HOMO/LUMO	HOMO = 5.8 eV, LUMO = 3.1 eV [1]
Synonyms	F₂Irpic, Ir(diFppy)₂(pic) Bis[2-(4,6-difluorophenyl)pyridinato-C²,N](picolinato)iridium(III)
Classification / Family	Iridium complex, Phosphorescent blue emitter, Organic light-emitting diodes, Organic electronics

Product Details

Purity	>99.5% (Sublimed) >98.0% (Unsublimed)
Melting point	330-335 °C (lit.)
Appearance	Yellow powder

Purity

>99.5% (Sublimed)

>98.0% (Unsublimed)

Melting point

330-335 °C (lit.)

Appearance

Yellow powder

*Sublimation is a technique used to obtain ultra pure-grade chemicals. For more details about sublimation, please refer to the Sublimed Materials for OLED devices page.

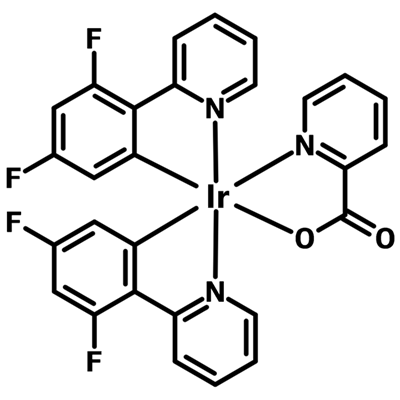

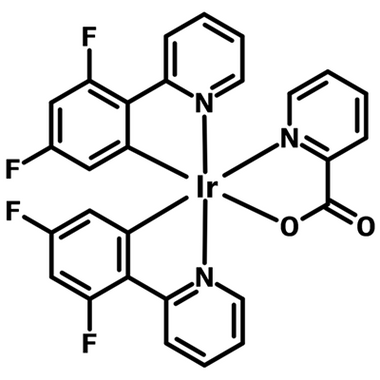

Chemical Structure

Device Structure(s)

Device structure	ITO/MoO₃ /FIrpic:CBP/FIrpic:TPBi/LiF/Al [1]
Colour	Blue
Max. Current Efficiency	49 cd/A
Max. Power Efficiency	48 lm W⁻¹

Device structure	ITO/NPB(40 nm)/CDBP:10% FIrpic (10 nm)/TPBI (4 nm)/CBP:5% Ir(ppy)3:3% Ir(piq)₂(acac) (20 nm)/TPBI (50 nm)/LiF(0.8 nm)/Al [2]
Colour	White
Max. Luminance	42,700 cd/m²
Max. Power Efficiency	8.48 lm W⁻¹

Device structure	ITO/NPB (50nm)/mCP (10 nm)/CbzTAZ:15 wt% FIripic (35 nm)/TAZ (30 nm)/LiF (1 nm)/Al (120 nm) [3]
Colour	Blue
Max. Luminance	40,000 cd/m²
Max. Current Efficiency	25.8 cd/A
Max. Power Efficiency	22.5 lm W⁻¹

Device structure	ITO/TAPC (50 nm)/TcTa:FIrpic (7%,10 nm)/26DCzPPy:FIrpic (20%, 10 nm)/Tm3PyPB (20 nm)/Tm3PyPB:Cs (30 nm)/LiF (1 nm)/Al (120 nm) [4]
Colour	Blue
Max. EQE	20.3%
Max. Power Efficiency	36.7 lm W⁻¹

Device structure	ITO /NPB (40 nm)/TCTA (5 nm)/TCTA:1 wt% fbi₂Ir(acac):4 wt% FIrpic (17.5 nm)/TAZ (40 nm)/LiF/Al [5]
Colour	White
Max. EQE	13.3%
Max. Current Efficiency	37.5 cd/A

Device structure	ITO/MoO₃ (3 nm)/TCTA (50 nm)/TCTA:TmPyPb:FIrpic (20 nm)/TmPyPb (30 nm)/LiF (1 nm)/Al (120 nm) [6]
Colour	Blue
Max. EQE	20.4%
Max. Power Efficiency	55.4 lm W⁻¹

Device structure	ITO (150 nm)/NPB (70 nm)/mCP:FIrpic-8.0%:Ir(ppy)₃-0.5%:Ir(piq)₃-0.5% (30 nm)/TPBi (30 nm)/Liq (2 nm)/Al (120 nm) [7]
Colour	White
Max. Luminance	37,810 cd/m²
Max. Current Efficiency	48.1 cd/A

Device structure	ITO/DNTPD* (60 nm)/NPB (20 nm)/mCP (10 nm)/mCP:FIrpic (25 nm)/CBP:Ir(piq)₂acac (5 nm)/BCP (5 nm)/Alq₃ (20 nm)/LiF (1 nm)/Al (200 nm) [8]
Colour	White
EQE@500 cd/m²	8.2 %
Current Efficiency @500 cd/m²	12.7 lm W⁻¹

Device structure	ITO/MoO_x (5 nm)/NPB (40 nm)/4% Y-Pt:TCTA (20 nm)/8% FIrpic:mCP(10 nm)/8% FIrpic*:UGH2 (10 nm)/BAlq (40 nm)/LiF (0.5 nm)/Al (100 nm) [9]
Colour	White
Max. EQE	16.0%
Max. Current Efficiency	45.6 cd/A
Max. Power Efficiency	35.8 lm W⁻¹

Device structure	ITO/MoO₃ (8 nm)/(NPB)(80 nm)/TAPC(5 nm)/TCTA:4 wt% Ir(MDQ)₂(acac) (4 nm)/TCTA:2 wt% Ir(ppy)₃ (4 nm)/43 wt% TCTA: 43 wt% 26DCzPPy: 14 wt% FIrpic (5 nm)/TmPyPb (40 nm)/LiF/Al [10]
Colour	White
Max. EQE	19.4%
Max. Current Efficiency	43.6 cd/A
Max. Power Efficiency	45.8 lm W⁻¹

Device structure	ITO/PEDOT:PSS/TCTA:TPOB:10 wt % FIrpic/TmPyPB/Cs₂CO₃/Al [11]
Colour	Blue
Max. EQE	13.8%
Max. Current Efficiency	28.2 cd/A
Max. Power Efficiency	22 lm W⁻¹

Device structure	ITO/PEDOT:PSS(40 nm)/TCTA:TAPC:FIrpic:Ir(ppy)₃:Ir(MDQ)₂(acac) (40nm)/TmPyPB (50 nm)/LiF (1 nm)/Al [12]
Colour	White
Max. Current Efficiency	37.1 cd/A
Max. Power Efficiency	32.1 lm W⁻¹

Device structure	ITO/MoO₃ (7nm)/NPB (85 nm)/ (PPQ)₂Ir(acac):Ir(ppy)₃:FIrpic:mCP/TAZ/LiF/Al [13]
Colour	White
Max. EQE	20.1%
Max. Power Efficiency	41.3 lm W⁻¹

When fabricating devices, processing and handling materials in a glove box helps maintain their purity and maintain efficiency by avoiding contamination from particulates, moisture, and airborne impurities.

Characterisation

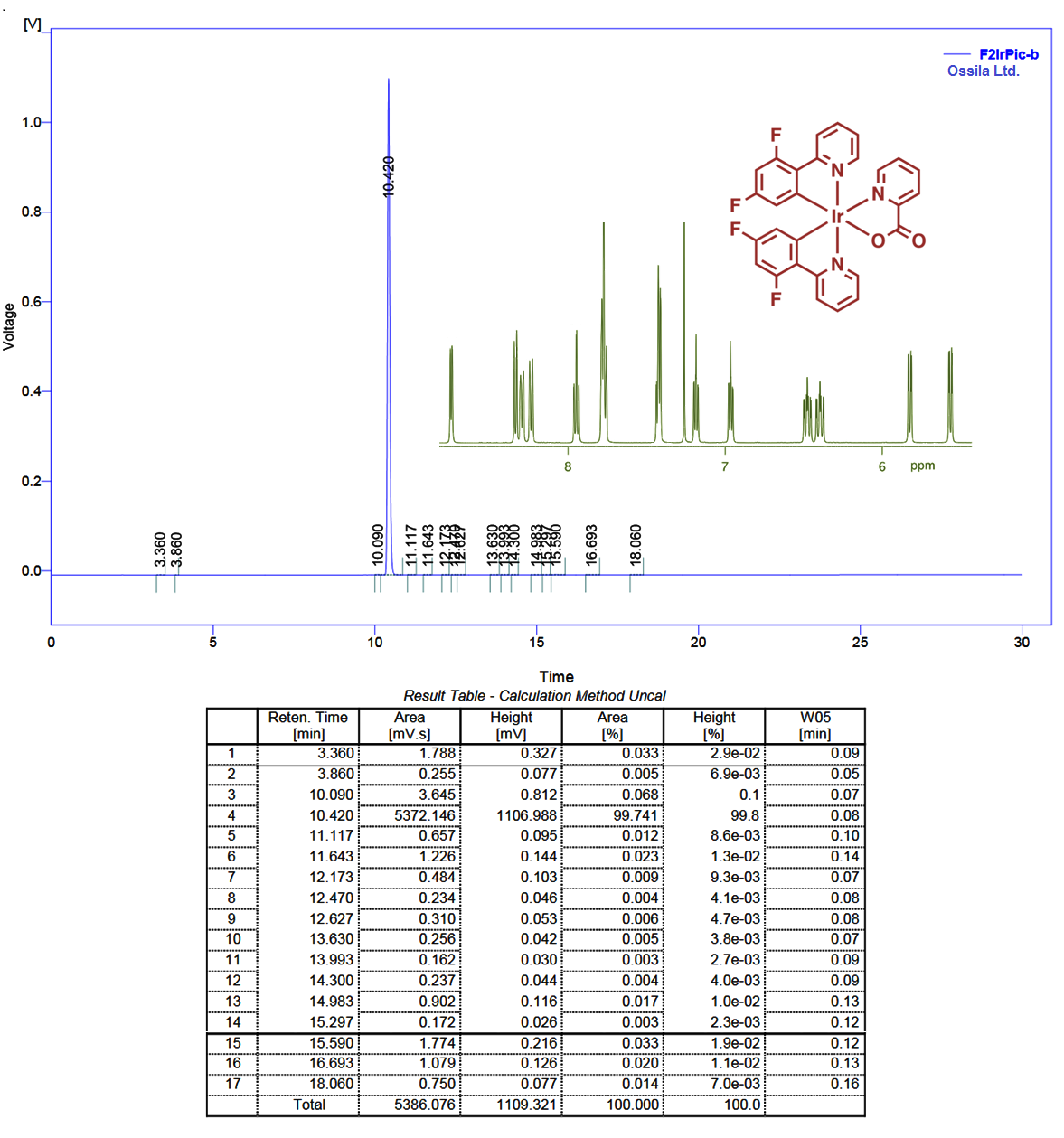

HPLC trace of FIrPic, F2IrPic — HPLC trace of Bis[2-(4,6-difluorophenyl)pyridinato-C2,N](picolinato)iridium(III) (FIrPic, F2IrPic)

Pricing

Grade	Order Code	Quantity	Price
Sublimed (>99.5% purity)	M0711A1	100 mg	£280
Sublimed (>99.5% purity)	M0711A1	250 mg	£560
Sublimed (>99.5% purity)	M0711A1	500 mg	£1010
Sublimed (>99.5% purity)	M0711A1	1 g	£1800
Unsublimed (>98.0% purity)	M0711B1	250 mg	£420
Unsublimed (>98.0% purity)	M0711B1	500mg	£710
Unsublimed (>98.0% purity)	M0711B1	1g	£1250

MSDS Documentation

FIrpic MSDS sheet

Literature and Reviews

Band Alignment at Anode/Organic Interfaces for Highly Efficient Simplified Blue-Emitting Organic Light-Emitting Diodes, Z. Liu et al.,., J. Phys. Chem. C, 114, 16746–16749 (2010).
White organic light-emitting devices employing phosphorescent iridium complex as RGB dopants, R. Song et al., Semicond. Sci. Technol. 22, 728–731 (2007); doi:10.1088/0268-1242/22/7/009.
High Power Efficiency Solution-Processed Blue Phosphorescent Organic Light-Emitting Diodes Using Exciplex-Type Host with a Turn on Voltage Approaching the Theoretical Limit, X. Ban et al., ACS Appl. Mater. Interfaces, 7, 25129−25138 (2015); DOI: 10.1021/acsami.5b06424.

Dependence of Light-Emitting Characteristics of Blue Phosphorescent Organic Light-Emitting Diodes on Electron Injection and Transport Materials, Jeong-Ik Lee et al. ETRI J., 34 (5), 690-695 (2012).
Highly efficient single-emitting-layer white organic light-emitting diodes with reduced efficiency roll-off, Q Wang, et al., Appl. Phys. Lett.,94, 103503 (2009); doi: 10.1063/1.3097028.
High efficiency blue phosphorescent organic light-emitting diode based on blend of hole- and electron-transporting materials as a co-host, Y. Chen et al., Appl. Phys. Lett. 100, 213301 (2012); doi: 10.1063/1.4720512.
Study of Sequential Dexter Energy Transfer in High Efficient Phosphorescent White Organic Light-Emitting Diodes with Single Emissive Layer, J-K. Kim et al., Sci. Reports, 4, 7009 (2014); DOI: 10.1038/srep07009.
Improved color stability in white phosphorescent organic light-emitting diodes using charge confining structure without interlayer, S-H. Kim et al., Appl. Phys. Lett. 91, 123509 (2007); http://dx.doi.org/10.1063/1.2786853.
High efficiency fluorescent white organic light-emitting diodes with red, green and blue separately monochromatic emission layers, Z. Zhang et al., Org. Electronics, 10, 491-495 (2009); doi:10.1016/j.orgel.2009.02.006.
High-Efficiency Phosphorescent White Organic Light-Emitting Diodes with Stable Emission Spectrum Based on RGB Separately Monochromatic Emission Layers, Q. Zhang et al., Chin. Phys. Lett., 31 (4) 046801 (2014).
Enhanced Electron Affinity and Exciton Confinement in ExciplexType Host: Power Efficient Solution-Processed Blue Phosphorescent OLEDs with Low Turn-on Voltage, X. Ban et al., ACS Appl. Mater. Interfaces, 8, 2010-2016 (2016); DOI: 10.1021/acsami.5b10335.
Solution-Processed Small Molecules As Mixed Host for Highly Efficient Blue and White Phosphorescent Organic Light-Emitting Diodes, Q Fu. et al., ACS Appl. Mater. Interfaces, 4, 6579−6586 (2012); dx.doi.org/10.1021/am301703a.
Manipulating Charges and Excitons within aSingle-Host System to Accomplish Efficiency/CRI/Color-Stability Trade-off for High-PerformanceOWLEDs, Q. Wang et al., Adv. Mater., 21, 2397–2401 (2009).
