FTO Glass Substrates, 20 x 15 mm, PV and OLED
Substrates and Fabrication

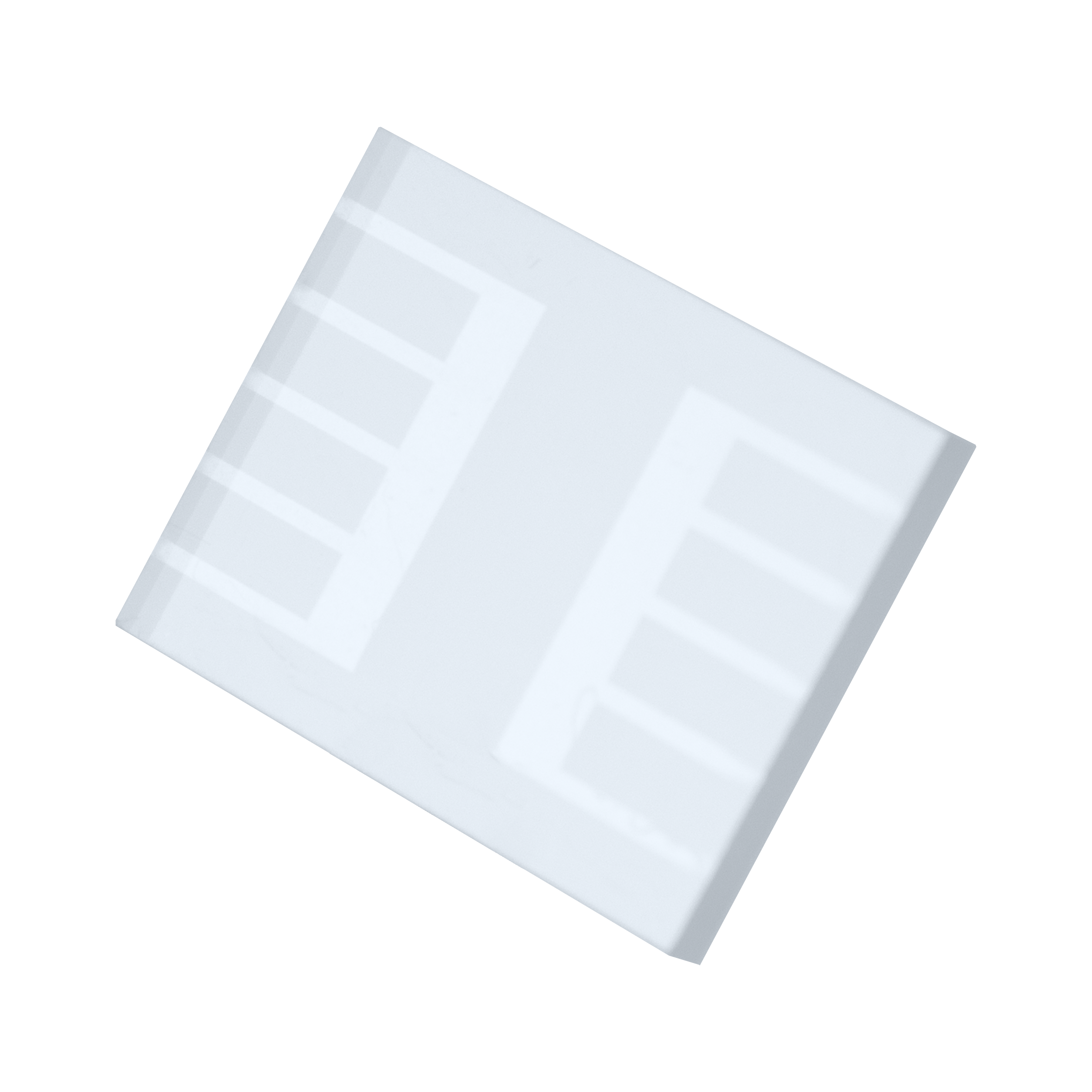

Pre-Patterned FTO Glass Substrates for OPV and OLED Testing
For multi-pixel or single pixel architectures
Specifications | Related Products | Resources and Support
Use this substrate with our multi-electrode deposition mask to create 8 individual pixels or single-electrode deposition mask to create a single large pixel.
Specifications
| Substrate Size | 20 mm x 15 mm |
|---|---|
| Thickness | 1.6 mm |
| Glass Type | Polished soda lime, float glass |
| Substrate Coating | FTO |
| FTO Thickness | 300 nm |
| ITO Resistance | 6 – 9 Ω/square |
