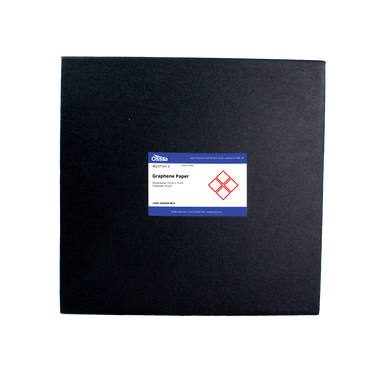

Graphene Sheet

CAS Number 1034343-98-0

2D Materials, Anode Materials, Battery Materials, Graphene Materials, Low Dimensional Materials, Materials

High Mechanical Strength and Superior Electrical Conductivity

For applications in sensors, batteries and supercapacitors, thermal control and heat spreading, and EMI shielding

Overview | Product Information | Related Products

Graphene sheet (CAS number 1034343-98-0), also referred to as graphene paper, is the assembly of individual graphene nanosheets into macroscopic structure to form paper-like material. The achieved freestanding graphene sheet shows a unique combination of outstanding properties such as high mechanical strength, large surface area, superior electrical conductivity, and stability in electrochemical environment, outperforming many other carbon substrates.

As a functional material, graphene sheet does not only act as a conducting agent, but also as a current collector. This makes graphene sheet, a promising base flexible electrode material for energy storage devices with significantly improved performances in energy density, power density and better life cycle compared to non-flexible conventional electrode architecture.

High Purity

>99% purity graphene sheet

Worldwide Shipping

Quick and reliable shipping

Low Price

Affordable graphene sheet

Superior Conductivity

Electrical conductivity in plane 3,700 S/cm

General Information

CAS Number	1034343-98-0
Chemical Formula	C
Full Name	Graphene Sheet
Purity	>99%
Form	Gray to black sheet
Synonyms	Graphene paper, Graphene film, Graphene foil
Classification or Family	Graphene, Graphene Film, 2D Materials, Carbon Nanomaterials

Graphene Sheet

Product Code	M2371A1	M2371B1
Thermal Conductivity In Plane	550 W/mK	550 W/mK
Resistivity	Electrical resistivity at surface 0.06 Ω/sq	Electrical resistivity at surface 0.06 Ω/sq
Conductivity	Electrical Conductivity In Plane 3,700 S/cm	Electrical Conductivity In Plane 3,700 S/cm
Tensile Strength	10 MPa	10 MPa
EMI Shielding	EMI Shielding: 53 dB at 30 MHz, 58 dB at 1.5 GHz	EMI Shielding: 53 dB at 30 MHz, 58 dB at 1.5 GHz
Density	1.8 g/cm³	1.8 g/cm³
Size	10 cm × 10 cm	5 cm × 5 cm
Thickness	35 μm	35 μm

Illustrative structure of a graphene monolayer, CAS 7782-42-5

MSDS Documentation

Graphene Sheet MSDS Sheet

Pricing

Batch	Quantity	Price
M2371A1-5EA	5 Pieces	£165
M2371A1-10EA	10 Pieces	£260
M2371B1-5EA	5 Pieces	£100
M2371B1-10EA	10 Pieces	£160

More on Graphene Sheets

There are two main procedures to prepare free standing graphene sheets, “top-down” and “bottom-up”. The top-down processes attain graphene films from graphite, including vacuum filtration, direct evaporation, and diverse coating techniques. The bottom-up processes are based on the synthesis of graphene films from gaseous carbon sources, such as chemical vapor deposition.

With thermal conductivity and spreading-in-plane conductivity above 550 W/mK, and surface resistivity ranging as low as 0.04 Ω/sq, graphene sheet has following applications but not limited to:

Sensors
Electrodes for batteries and supercapacitors
Thermal control and heat spreading
EMI Shielding

References

Graphene paper with controlled pore structure for high-performance cathodes in Li–O2 batteries, D. Kim et al., Carbon, 100, 265-272 (2016); DOI: 10.1016/j.carbon.2016.01.013.
Highly Conductive Graphene Paper with Vertically Aligned Reduced Graphene Oxide Sheets Fabricated by Improved Electrospray Deposition Technique, J. Yan et al., ACS Appl. Mater. Interfaces, 11, 11, 10810–10817 (2019); DOI: 10.1021/acsami.8b19811.
Highly Conducting Graphene Sheets and Langmuir-Blodgett Films, X. Li et al., Nat. Nanotech., 3, 538–542 (2008); DOI: 10.1038/nnano.2008.210.

Mechanically Strong, Electrically Conductive, and Biocompatible Graphene Paper, H. Chen et al., Adv. Mater., 20 (18), 3557-3561 (2008); 10.1002/adma.200800757.
Advanced mechanical properties of graphene paper, A. Ranjbartoreh et al., J. Appl. Phys., 109, 014306 (2011); DOI: 10.1063/1.3528213.
Flexible energy storage devices based on graphene paper, H. Gwon et al., Energy Environ. Sci., 4, 1277-1283 (2011); DOI: 10.1039/C0EE00640H.Ultrahigh Conductive
Graphene Paper Based on Ball-Milling Exfoliated Graphene, C. Teng et al., Adv. Funct. Mater., 27 (20), 700240 (2017); DOI: 10.1002/adfm.201700240.
Growth of Metal–Metal Oxide Nanostructures on Freestanding Graphene Paper for Flexible Biosensors, F. Xiao et al., Adv. Funct. Mater., 22 (12), 2487-2494 (2012); DOI: 10.1002/adfm.201200191.
Graphene paper for exceptional EMI shielding performance using large-sized graphene oxide sheets and doping strategy, Y. Wan et al., Carbon, 122, 74-81 (2017); DOI: 10.1016/j.carbon.2017.06.042.
Free-standing graphene paper for energy application: Progress and future scenarios, R.Karthick et al., Carbon, 150, 292-310 (2019); DOI: 10.1016/j.carbon.2019.05.017.
Recent progress in graphene-based electrodes for flexible batteries, C. Dai et al., Infomat, 2(3), 509-526 (2020); DOI: 10.1002/inf2.12039.
Flexible free-standing vertically aligned carbon nanotube on activated reduced graphene oxide paper as a high performance lithium ion battery anode and supercapacitor, A. Abdollahi et al., Electrochimica Acta 320, 134598 (2019); 10.1016/j.electacta.2019.134598.
Recent Advances in Graphene-Based Free-Standing Films for Thermal Management: Synthesis, Properties, and Applications, F. Gong et al., Coatings, 8(2), 63 (2018); DOI: 10.3390/coatings8020063.
