4'-(pyridin-4-yl)-[1,1'-biphenyl]-4-carboxylic acid

CAS Number 1393711-96-0

Chemistry Building Blocks, Materials, MOF Ligands, Porous Organic Frameworks

4'-(pyridin-4-yl)-[1,1'-biphenyl]-4-carboxylic acid MSDS

4'-(pyridin-4-yl)-[1,1'-biphenyl]-4-carboxylic acid CAS 1393711-96-0

Metal Organic Frameworks (MOFs) Biphenylpyridine Ligand

A rigid linear ligand linker for MOFs in applications of methane storage

Specifications | MSDS | Literature and Reviews

4'-(Pyridin-4-yl)-[1,1'-biphenyl]-4-carboxylic acid (HPBPC), CAS number 1393711-96-0, has a rigid linear structure of biphenylpyridine with a carboxylic acid at the end of benzene rings.

MOF NiL2 (L=4-(4-pyridyl)-biphenyl-4-carboxylic acid), shows a dynamic feature of diamondoid topology switches between closed non-porous and several open porous phases at specific CO₂ and CH₄ pressures. Metal doping of the MOF with cobalt ions enables control over the gate opening between non-porous and porous phases. By adjusting the ratio of Ni/Co, methane-induced phase transformations can be fine-tuned to enhance methane working capacity. The optimal working capacity from 5 to 35 bar at 298 K (153 cm³ cm⁻³) was found for Ni_0.89Co_0.11L₂ (X-dia-1- Ni_0.89Co_0.11), which is greater than that of benchmark rigid MOFs.

General Information

CAS Number	1393711-96-0
Chemical Formula	C₁₈H₁₃NO₂
Full Name	4'-(pyridin-4-yl)-[1,1'-biphenyl]-4-carboxylic acid
Molecular Weight	275.30 g/mol
Synonyms	HPBPC, 4-PBP, 4-(4-pyridyl)-biphenyl-4-carboxylic acid, 4-(pyridine-4-yl)phenylbenzoate
Classification / Family	Biphenylpyridine MOF ligands,

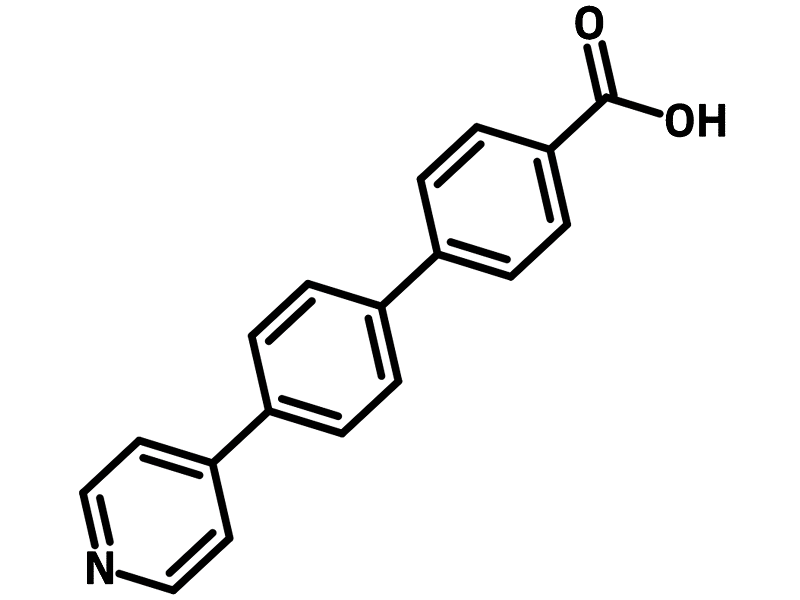

Chemical Structure

Product Details

Purity	>98%
Melting Point	n.a.
Appearance	White powder/crystal

MSDS Documentation

4'-(Pyridin-4-yl)-[1,1'-biphenyl]-4-carboxylic acid MSDS Sheet

Literature and Reviews

Windmill Co4{Co4(μ4-O)} with 16 Divergent Branches Forming a Family of Metal–Organic Frameworks: Organic Metrics Control Topology, Gas Sorption, and Magnetism, Q. Chen et al., Chem. Eur. J., 22 (34), 12088-12094 (2016); DOI: 10.1002/chem.201601826.
Reversible Switching between Highly Porous and Nonporous Phases of an Interpenetrated Diamondoid Coordination Network That Exhibits Gate-Opening at Methane Storage Pressures, Q. Yang et al., Angew. Chem., Int. Ed., 57 (20), 5684-5689 (2018); DOI: 10.1002/anie.201800820.
Regulation of the Degree of Interpenetration in Metal–Organic Frameworks, G. Verma et al., Top Curr Chem (Z) 378, 4 (2020); DOI: 10.1007/s41061-019-0268-x.

Metal Doping to Control Gate Opening and Increase Methane Working Capacity in Isostructural Flexible Diamondoid Networks, S. Wang et al., ChemSusChem, 16 (9), e202300069 (2023); DOI: 10.1002/cssc.202300069.
