Indolo[3,2-b]carbazole

CAS Number 6336-32-9

Chemistry Building Blocks, Heterocyclic Building Blocks, Materials, Monomers

Indolo[3,2-b]carbazole, used for the preparation of semiconducting molecules and polymers

High-quality and high-purity monomer available to purchase online.

Specifications | MSDS | Literature and Reviews

Found in Brassica family vegetables, indolo[3,2-b]carbazole (CAS number 6336-32-9) is a potent agonist of the aryl hydrocarbon receptor (AhR). With good thermal, chemical and environmental stability, Indolo[3,2-b]carbazole structure is highly desired in OLED and OFET devices.

Indolo[3,2-b]carbazole (ICz) has a large planar and rigid conjugated structure with fused alternating three benzene and two pyrrole rings. It can be considered as a structure of fused indole and carbazole, or two indoles fused at the opposite positions of a benzene ring.

Indolo[3,2-b]carbazole has been a useful building block for the preparation of various semiconducting small molecules and polymers. By introducing various functional groups into the 2,8,3,6-, or especially 5,11- positions of ICZ main structure, tuneable outstanding photophysical properties, great morphological stability and thermal stability can be achieved. Due to their electron donating nature, Indolo[3,2-b]carbazole derivatives have been used as hole transporting, charge injection, host and electroluminescent materials for OLED and OFET devices.

Semiconducting Indolo[3,2-b]carbazole derivatives are relatively bearing low HOMO levels and large band gaps. Exhibiting p-type FET behaviour with hole mobilities as high as 0.2 cm² V^-1 s^-1 and an on/off current ratio higher than 10⁶, 5,11-bis(4-octylphenyl)indolo[3,2-b]carbazole allows efficient overlap between the oligomeric molecules due to its planar and rigid structure, promoting self-organized readily into highly crystalline layered structures in solid films.

Indolocarbazole building block

For the synthesis of OFET, OPV, and OLED materials

Worldwide shipping

Quick and reliable shipping

Planar and rigid

Promoting self-assemble layered structure

High purity

>98% Purity

General Information

CAS Number	6336-32-9
Chemical Formula	C₁₈H₁₂N₂
Full Name	Indolo[3,2-b]carbazole
Molecular Weight	256.31 g/mol
Synonyms	5,11-Dihydroindolo[3,2-b]carbazole, ICz
Classification / Family	Indolo-carbazoles, semiconductor synthesis intermediates, Electron donor unit, OLED, OFETs, organic photovoltaics

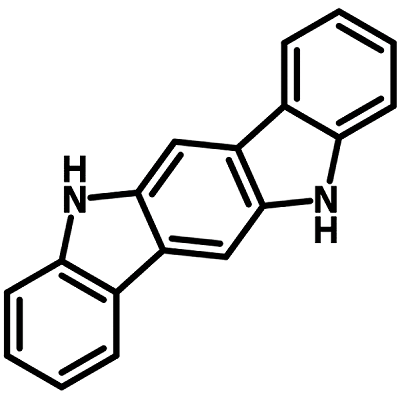

Chemical Structure

Product Details

Purity	>98% (¹H NMR)
Melting Point	460 °C
Appearance	White to yellowish green powder/crystals

MSDS Documentation

Indolo[3,2-b]carbazole MSDS Sheet

Literature and Reviews

Synthesis, Characterization, and Application of Indolo[3,2-b]carbazole Semiconductors, P. Boudreault et al., J. Am. Chem. Soc., 129, 29, 9125–9136 (2007); DOI: 10.1021/ja071923y.
Indolo[3,2-b]carbazole-Based Thin-Film Transistors with High Mobility and Stability, Y. Wu et al., J. Am. Chem. Soc., 127, 2, 614–618 (2005); DOI: 10.1021/ja0456149.
Four new bipolar Indolo[3,2-b]carbazole derivatives for blue OLEDs, H. Yang et al., Dyes Pigm., 187, 109096 (2021); DOI: 10.1016/j.dyepig.2020.109096.

A Simple and Efficient Method for the Synthesis of Indolo[3,2-b]carbazoles, M. Deb et al., Synthesis, 6, 929-932 (2010); DOI: 10.1055/s-0029-1218644.
Two novel indolo[3,2-b]carbazole derivatives containing dimesitylboron moieties: synthesis, photoluminescent and electroluminescent properties, H. Shi et al., New J. Chem., 38, 2368-2378 (2014); DOI: 10.1039/C4NJ00140K.
Molecular order of air-stable p-type Organic Thin-Film Transistors by tuning the extension of the π-conjugated core: the cases of Indolo[3,2-b]carbazole and Triindole semiconductors, M. Reig et al., J. Mater. Chem. C, 3, 506-513 (2015); DOI: 10.1039/C4TC01692K..
