4-Pentylphenyl 4-Methoxybenzoate
CAS Number 38444-13-2
4-Pentylphenyl 4-methoxybenzoate (Nematal 105), liquid crystal (nematic)
Liquid crystal for the application of optical electronics i.e. in liquid-crystal display (LCD).
Specifications | Pricing and Options | MSDS | Literature and Reviews
4-Pentylphenyl 4-methoxybenzoate (PPMB), CAS number 38444-13-2, also known as Nematal 105, is a nematic liquid crystal slightly above room temperature with a chemical structure of 4-methoxyphenyl ester of 4-pentylphenyl.
4-Pentylphenyl 4-methoxybenzoate can act as a host material for luminophores such as N,N′-Bis(2,6-dimethylphenyl)perylene-3,4,9,10-tetracarboxylic diimide (PDI). When PDI is dissolved in the liquid crystal host to an approximate concentration of 10-5 M. PDI molecules are successfully aligned within a nematic liquid crystal. The homeotropic alignment leads to decreased surface losses, despite increased absorption when illuminated through the narrow edges. 4-Pentylphenyl 4-methoxybenzoate can also be used as a achiral host of chiral compounds which induce a helical ordering and thus create a chiral nematic phase, the so called chiral nematic liquid crystal with helical structures.
Nematic liquid crystal
With phenylbenzoate core
Host materials
For luminophores
Worldwide shipping
Quick and reliable shipping
High purity
>98% High purity

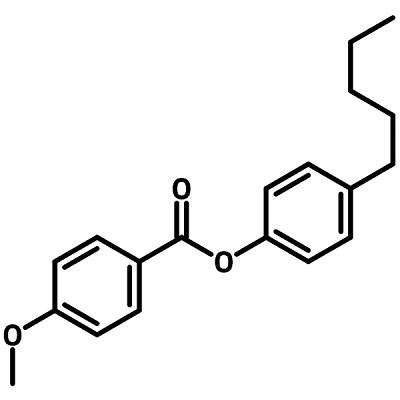

Chemical Structure
General Information
| CAS Number | 38444-13-2 |
| Chemical Formula | C19H22O3 |
| Molecular Weight | 298.38 |
| Full Name | 4-Pentylphenyl 4-methoxybenzoate |
| Synonyms | PPMB, Nematal 105, Pentylphenyl methoxybenzoate, >4-n-Pentylphenyl p-anisate, 4-Amylphenyl 4′-methoyxbenzoate, 4-Methoxybenzoic Acid 4-Pentylphenyl Ester |
| Classification / Family | Phenyl Ester Liquid Crystals, Nematic Liquid Crystals. |
Product Details
| Purity | >98% (1HNMR) |
| Form | White powder/crystals |
| Melting Point | 29.0 °C |
| Solubility | Methanol |
Pricing
| Batch | Quantity | Price |
| M2363A1 | 25 g | £210 |
| M2363A1 | 50 g |
£340 |
| M2363A1 | 100 g | £560 |
MSDS Documentation
4-Pentylphenyl 4-methoxybenzoate MSDS Sheet
Literature and Reviews
- Induced Homeotropic Alignment of Nematic Liquid Crystals by Doping Side-on Carbosilane-based Oligomers, K. Kaneko et al., Chem. Lett., 47 (9), 1180-1183 (2018); DOI: 10.1246/cl.180509.
- “Colored” inorganic dopants for inducing liquid crystal chiral nematic and blue phases: monitoring of dopant–host interaction by Raman spectroscopy, J. Yoshida et al., Chem. Commun., 53, 5103-5106 (2017); DOI: 10.1039/C7CC01920C.
- Towards an aligned luminophore solar concentrator, R. MacQueen et al., Opt. Express, 18, A161-A166 (2010); DOI: 10.1364/OE.18.00A161.
