ITO Glass Substrate Pack, 20 x 15 mm, PV and OLED
Substrates and Fabrication
Create and Test 100 Fully Encapsulated Devices
Reduce edge ingress to improve device stability and maximize the volume of statistical data
Specifications | Related Products | Resources and Support

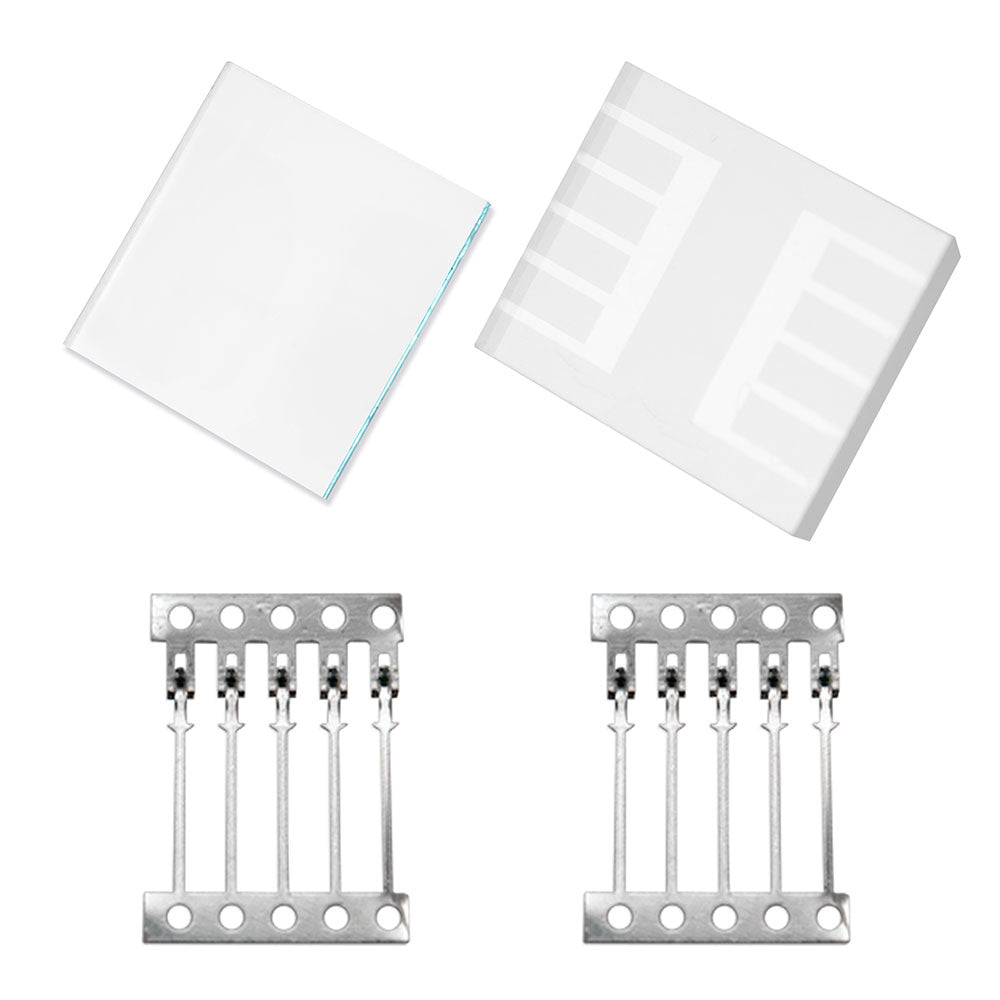

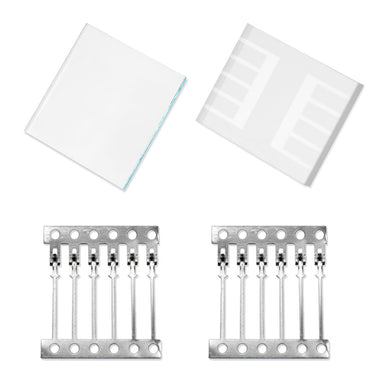

Substrate consumables for 100 fully encapsulated LEDs or PVs, suitable for measurement under ambient conditions. Designed for rapid fabrication, the substrate pack contains:
- Pre-patterned ITO glass substrates (pack of 100)
- Encapsulation epoxy (10 ml)
- Encapsulation coverslips (pack of 100)
- Electrical connection legs (200 strips of 5 legs)
Our substrates are manufactured from commercial-grade ITO used in the flat panel display industry for high consistency and very low defect rates. The encapsulation epoxy has been proven not to damage delicate polymers or reactive layers (such as calcium), and the encapsulation slips prevent water and oxygen ingress when storing your devices under ambient conditions. For testing, our electrical connection legs clip easily onto the sides of the substrate to make reliable contact with the ITO.
We have discontinued our generation I and II substrates and masks. Contact us for help migrating to the new 8-pixel design.
Specifications
ITO Glass Substrates
| Product Code | S211 |
|---|---|
| Substrate Size | 20 mm x 15 mm |
| Thickness | 1.1 mm |
| Glass Type | Polished soda lime, float glass |
| Substrate Coating | Fully oxidized ITO |
| ITO Thickness | 100 nm |
| ITO Resistance | 20 Ω/square |
| Glass Roughness | < 1 nm RMS (by AFM) |
| ITO Roughness | 1.8 nm RMS (by AFM) |
Encapsulation Epoxy
| Product Code | E132 |
|---|---|
| Viscosity | 250 to 360 cps @ 23°C |
| Appearance | Colorless |
| Cure Schedule | 5 to 30 seconds at 250 to 350 nm at 10-100 mW/cm2 |
| Refractive Index | 1.4957 (at 589 nm) |
| Specific Gravity | 1.09 to 1.21 g/cc |
| Cured Shore D Hardness | 85+ D |
| Tensile Strength | 8,000 psi |
| Elongation | 3% |
| Glass Transition Temperature | 138°C |
| CTE | 50 x 10-6 |
| Dielectric Constant | 3.94 @ 60 Hz @ 20°C |
| Volume Resistivity | 3.0 x 1014 Ω cm |
| Shelf Life | 12 months at 23°C |
Encapsulation Coverslips
| Product Code | C181 |
|---|---|
| Size | 12 mm x 15 mm |
| Thickness | 0.55 mm |
| Material | Float glass |
Electrical Connection Legs
| Product Code | E242 |
|---|---|
| Pitch | 0.1 inch (2.54 mm) |
| For Glass Thickness | 1.1 mm |
| Pack | 200 x 5 legs |
