ITO Glass Scale-Up PV and OLED Substrate Pack (Modules)
Substrates and Fabrication
Create and Test Fully Encapsulated Scale-Up Devices
Fabricate 20 or 100 high-quality devices
Specifications | Related Products | Resources and Support

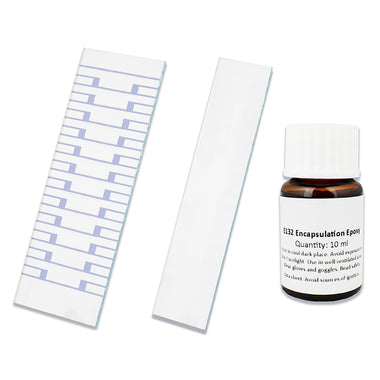

Substrate consumables for creating fully encapsulated LEDs and PVs. Available at a bundle price, the substrate pack contains:
- Modules ITO scale-up substrates
- Encapsulation epoxy
- Encapsulation coverslips
Our substrates are manufactured from commercial-grade ITO used in the flat panel display industry for high consistency and very low defect rates. The encapsulation epoxy has been proven not to damage delicate polymers or reactive layers (such as calcium), and the encapsulation slips prevent water and oxygen ingress when storing your devices under ambient conditions. For testing we recommend a pogo pin based connection, this can be done using the Ossila Solar Cell I-V Test System.
Specifications
| Pack of 20 | Pack of 100 | |
|---|---|---|
| Number of Substrates | 20 | 100 |
| Number of Encapsulation Slides | 20 | 100 |
| Amount of Epoxy | 10 ml | 60 ml |
Modules ITO Glass Substrates
| Product Code | S251 |
|---|---|
| Size | 25 mm x 75 mm |
| Thickness | 1.1 mm |
| Glass Type | Polished soda lime, float glass |
| Substrate Coating | Fully oxidized ITO |
| ITO Thickness | 100 nm |
| ITO Resistance | 20 Ω/square |
| Glass Roughness | Less than 1 nm RMS (by AFM) |
| ITO Roughness | 1.8 nm RMS (by AFM) |
Encapsulation Epoxy
| Product Code | E132 |
|---|---|
| Viscosity | 250 to 360 cps @ 23°C |
| Appearance | Colorless |
| Cure Schedule | 5 to 30 seconds at 250 to 350 nm at 10-100 mW/cm2 |
| Refractive Index | 1.4957 (at 589 nm) |
| Specific Gravity | 1.09 to 1.21 g/cc |
| Cured Shore D Hardness | 85+ D |
| Tensile Strength | 8,000 psi |
| Elongation | 3% |
| Glass Transition Temperature | 138°C |
| CTE | 50 x 10-6 |
| Dielectric Constant | 3.94 @ 60 Hz @ 20°C |
| Volume Resistivity | 3.0 x 1014 Ω cm |
| Shelf Life | 12 months at 23°C |
Encapsulation Coverslips
| Product Code | C182 |
|---|---|
| Size | 17 mm x 75 mm |
| Thickness | 0.55 mm |
| Material | Float glass |
