MR-TADF Deep Blue Dopant
Ultra-deep-blue aggregation-induced delayed fluorescence (AIDF) emitter and oxygen-bridged triaryl-boron MR-TADF emitter
Specifications | MSDS | Literature and Reviews | Related Products
TB-tPCz is a deep-blue MR-TADF emitter with a rigid structure consisting of an oxygen-bridged boron (DOBNA) core as the electron acceptor and 3,6-diphenylcarbazole attached to the DOBNA core at the para-position to the central boron atom as the electron donor. Though the molecule bears four peripheral bulky tert-butyl groups, interestingly, TB-tPCz still exhibits excellent aggregation induced emission (AIE) in THF/water mixture. The emission intensity of TB-tPCz increases with the ratio of water to the THF the binary solvent. The tert-butyl groups renders TB-tPCz with good solubility in common organic solvents, showing deep blue photoluminescence emission at 422 nm with FWHM of 46 nm.
As a MR-TADF emitter, TB-tPCz shows the small ∆EST, large spin orbit coupling (SOC) constant, and the fast RISC rate. TB-tPCz-based non-doped devices exhibit ultra-deep-blue emissions of 424–428 nm and high color purity owing to their narrow bandwidths of ~ 42 nm, corresponding to the CIE of (x = 0.17, y = 0.06). They show a maximum external quantum efficiency (EQEmax) of 15.8%, exhibiting an unprecedented high performance in solution-processed deep-blue TADF-OLEDs.
General Information
| CAS Number | N/A |
|---|---|
| Full Name | 9-(2,12-Di-tert-butyl-5,9-dioxa-13b-boranaphtho- [3,2,1-de]anthracen-7-yl)-3,6-bis(4-(tert-butyl)phenyl)-9H-carbazole |
| Chemical Formula | C58H58BNO2 |
| Molecular Weight | 811.90 g/mol |
| Solubility | THF, DCM and Toluene |
| Photoluminescence | 421.6 nm (in toluene) |
| HOMO/LUMO | HOMO = 5.69 eV, LUMO = 2.64 eV |
| Classification/Family | Carbazole derivatives, oxygen-bridged boron (DOBNA) derivatives, Deep blue emitter, MR-TADF Dopant |

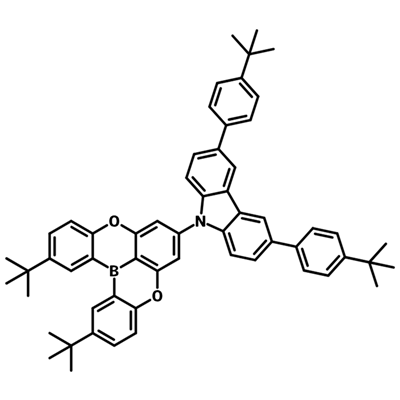

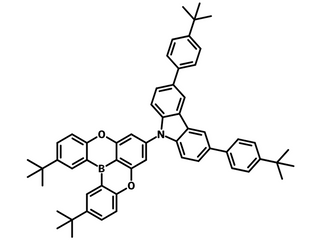

Chemical Structure
Product Details
| Purity | Sublimed ≥99% |
|---|---|
| Melting Point | Tg = 293 °C Td = 477 °C |
| Appearance | Yellow powder/crystals |
MSDS Documentation
TB-tPCz MSDS sheetLiterature and Reviews
- H. Kim et al. (2021); Ultra-Deep-Blue Aggregation-Induced Delayed Fluorescence Emitters: Achieving Nearly 16% EQE in Solution-Processed Nondoped and Doped OLEDs with CIEy < 0.1, Adv. Funct. Mater., 31 (33), 2102588; DOI: 10.1002/adfm.202102588.
- K. Naveen et al. (2023); Neoteric Advances in Oxygen Bridged Triaryl Boron-based Delayed Fluorescent Materials for Organic Light Emitting Diodes, Chem. Record, e202300208; DOI: 10.1002/tcr.202300208.
- G. Meng et al. (2025); Isomeric Pentagonal Fusion and π-Expanding of Nitrogen/Carbonyl-Containing Multi-Resonant Emitters for High-Performance and Narrowband Organic Electroluminescence, Adv. Funct. Mater., 2422973, DOI: 10.1002/adfm.202422973.
