HTL Solar 4 PEDOT Complex
Materials, Organic Conductors, PEDOT:PSS and PEDOT Polymer Blends
Anisole-Based PEDOT Formulation
Used as hole transport layer (HTL) for applications in OPV and perovskite solar cells.
Specifications | MSDS | Resources and Support
As an alternative to HTL Solar 3, HTL Solar 4 PEDOT Complex is another option for use as a hole transport layer in photovoltaics. The PEDOT formulation based in higher boiling point solvent anisole (CH3OC6H5) using an alternative counter ionomer to PSS. Anisole, titled as methoxybenzene, has a distinctive smell reminiscent of anise seed with a boiling point of 154 °C. It is a non-halogenated solvent that can promote highly crystalline semiconductor thin films with longer drying times.
Applicable in both standard and inverted type organic solar cell architectures, anisole based HTL Solar 4 exhibits good wetting and coating properties on most active layer materials, i.e. perovskite and polymer solar cells. HTL Solar 4 serves as hole transport interlayer (HTL) material between the active layer and electrode.
Stored at dark cool dry place with temperature not exceeding 40 °C, do not refrigerate.
Increased Wettability
For materials dissolved in or degraded by water
High Quality
Quality formulation
Low Conductivity
Low conductivity 0.002 – 0.2 S/cm
Versatile Use
Ideal for use with water sensitive materials or environments
Technical Data
| Product Name | Clevios™ HTL Solar 4 |
|---|---|
| Solvent | Anisole |
| Composition | PEDOT complex |
| Solid Content | 3.2 wt.% |
| Work Function | 4.4 – 4.8 eV |
| Resistivity | 9.0 Ω.cm |
| Conductivity | Low conductivity 0.002 – 0.2 S/cm |
| Particle Size Distribution | N/A |
| Viscosity | < 30 mPa.s |
| pH Value | N/A |

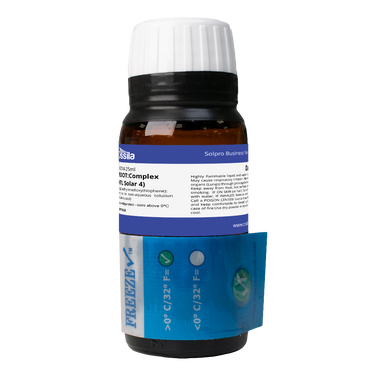

| >Packaging | 25 ml of solution sealed in light resistant bottles with temperature indicators |
| Storage | Room temperature (20 – 25 °C), do not freeze |
MSDS Document
HTL Solar 4 PEDOT Complex MSDS Sheet
Resources and Support
How to Spin Coat PEDOT Materials
For the deposition of thin films of PEDOT materials on a freshly prepared surface, we recommend using a vacuum-free spin coater and following this five-step process:
Read more...
PEDOT and PEDOT:PSS Synthesis
PEDOT synthesis involves the oxidative chemical or electrochemical polymerization of EDOT monomer. The choice of counterions and polymerization method significantly affects the conductivity, work function, and stability of the resulting PEDOT polymer.
Read more...
