NDI-2EH-2THBr

CAS Number 1320282-67-4

Dibromo Monomers, Heterocyclic Building Blocks, Materials, Monomers

Naphthalene diimide (NDI) derivative with thiophene pedants

A versatile building block for the synthesis of n-type conjugated semiconducting polymer containing naphthalene diimide (NDI) backbone unit, NDI-2EH-2THBr, 4,9-Bis(5-bromo-2-thienyl)-2,7-bis(2-ethylhexyl)benzo[lmn][3,8]phenanthroline-1,3,6,8(2H,7H)-tetrone, CAS 1320282-67-4

Specifications | MSDS | Literature and Reviews

NDI-2EH-2THBr is a naphthalene diimide (NDI) derivative with two branched ethylhexyl solubilizing alkyl chains and two 2-bromothienyl groups attached to the electron deficient NDI core to extend its conjugation. The naphthalene diimide core is rigid and the thiophenes attached give the molecule a degree of flexibility when it is embedded into the backbone of a polymer. The bromide function groups enable NDI-2EH-2THBr a versatile monomer for further reactions such as Stille or Suzuki coupling reactions to build more complex structures.

Naphthalene diimide with thiophene pedants

Monomer for conjugated semiconducting polymer synthesis

Worldwide Shipping

Quick and reliable shipping

High Purity

>98% high purity material

Facile Reactions

Ideal for Stille or Suzuki coupling C-C formation reactions

Conjugated small molecule electrolyte SME1, acting as cathode interlayer (CIL) and prepared from 4,9-bis(5-bromothiophen-2-yl)− 2,7-bis(2-ethylhexyl)benzo[lmn][3,8]phenanthroline-1,3,6,8(2H,7H)-tetraone (NDI-2EH-2THBr) and 3,3′-(2-(4,4,5,5-tetramethyl-1,3,2-dioxaborolan-2-yl)-9H-fluorene-9,9-diyl)bis(N,N-dimethylpropan-1-amine) (FL3N-2BAPE) via one-step Suzuki coupling reaction, possesses the excellent universality in varied non-fullerene systems. A PCE of 18.4% was achieved for a single-junction binary device based on PM6:BTP-eC9 as the active layer and SME1 as cathode interlayer.

General Information

CAS Number	1320282-67-4
Chemical Formula	C₃₈H₄₀Br₂N₂O₄S₂
Full Name	4,9-Bis(5-bromo-2-thienyl)-2,7-bis(2-ethylhexyl)benzo[lmn][3,8]phenanthroline-1,3,6,8(2H,7H)-tetrone
Molecular Weight	812.67 g/mol
Synonyms	NDI26-2ThBr, NDI-2EH-2THBr
Classification or Family	Naphthalene diimide (NDI), Cathode interlayer, Polymer semiconductors

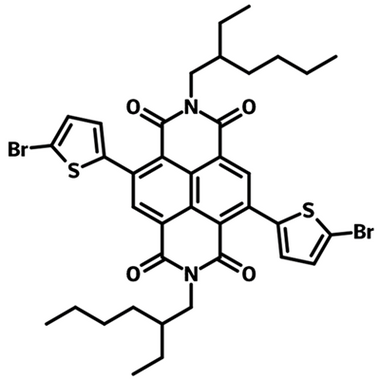

Chemical Structure

ndi-2eh-2thbr - 1320282-67-4 - 4,9-bis(5-bromo-2-thienyl)-2,7-bis(2-ethylhexyl)benzo[lmn][3,8]phenanthroline-1,3,6,8(2H,7H)-tetrone — NDI-2EH-2THBr - 4,9-Bis(5-bromo-2-thienyl)-2,7-bis(2-ethylhexyl)benzo[lmn][3,8]phenanthroline-1,3,6,8(2H,7H)-tetrone Chemical Structure, 1320282-67-4

Product Details

Purity	> 98%
Melting Point	-
Appearance	Dark red powder/crystals

MSDS Documentation

NDI-2EH-2THBr MSDS Sheet

Literature and Reviews

Y. Qin et al. (2021); 18.4% efficiency achieved by the cathode interface engineering in non-fullerene polymer solar cells, Nanotoday, 41, 101289; DOI: 10.1016/j.nantod.2021.101289.
H. Song et al. (2022); Hybrid Cathode Interlayer Enables 17.4% Efficiency Binary Organic Solar Cells, Adv. Sci., 9 (8), 2105575 (2022); DOI: 10.1002/advs.202105575.
S. Ding et al. (2021); Boosting the Efficiency of Non-fullerene Organic Solar Cells via a Simple Cathode Modification Method, ACS Appl. Mater. Interfaces, 13 (43), 51078–51085; DOI: 10.1021/acsami.1c16550.

Z. Wang et al. (2023); Naphthodithiophene Diimide (NDTI)-Based Cathode Interlayer Material Enables 19% Efficiency Binary Organic Solar Cells, Adv. Funct. Mater., 34 (12), 2313240 (2024); DOI: 10.1002/adfm.202313240.
W. Wang et al. (2024); Indoor organic photovoltaic module with 30.6 % efficiency for efficient wireless power transfer, Nano Energy, 128 (8), 109893; DOI: 10.1016/j.nanoen.2024.109893.
