1,2,4,5-Tetra((4-aminophenyl)ethynyl)benzene

CAS Number 2375652-88-1

Chemistry Building Blocks, COF Ligands, Materials, Monomers, Porous Organic Frameworks

1,2,4,5-Tetra((4-aminophenyl)ethynyl)benzene MSDS

1,2,4,5-Tetra((4-aminophenyl)ethynyl)benzene CAS 2375652-88-1

Covalent Organic Frameworks (COFs) Tetraethynylbenzene Ligand

An amine functionalised bridging ligand linker for COFs in application of gas uptake and photocatalysts

Specifications | MSDS | Literature and Reviews

1,2,4,5-Tetra((4-aminophenyl)ethynyl)benzene (TAEB), CAS number 2375652-88-1, has a benzene core with four ethynyl bridges at 1,2,4,5-positions that are connecting four 4-aniline functional groups. 1,2,4,5-Tetra((4-aminophenyl)ethynyl)benzene is a cross-like highly symmetrical tecton that is commonly engaged in the construction of microporous covalent organic frameworks (COFs) via the peripheral amino functional groups to condense with aldehydes or acids to form imine or amide linkers.

1,2,4,5-Tetra((4-aminophenyl)ethynyl)benzene was prepared by reacting 4-ethynylaniline with 1,2,4,5-tetrabromobenzene via Sonogashira cross coupling reaction in the presence of Pd(PPh₃)₄ and copper iodide as catalysts.

MOF and COF ligands

Amine ligand for cross-linked COF/MOF networks

Worldwide shipping

Quick and reliable shipping

High purity

>98% High purity

Facile reactions

Amine possesses excellent reactivity

General Information

CAS Number	2375652-88-1
Chemical Formula	C₃₈H₂₆N₄
Full Name	1,2,4,5-Tetra((4-aminophenyl)ethynyl)benzene
Molecular Weight	538.64 g/mol
Synonyms	TAEB, 4,4',4'',4'''-(Benzene-1,2,4,5-tetrayltetrakis(ethyne-2,1-diyl))tetraaniline, 1,2,4,5-Tetrakis[2-(4-aminophenyl)ethynyl]benzene, 4,4',4''-((4'-Amino-[1,1'-biphenyl]-2,4,5-triyl)tris(ethyne-2,1-diyl))trianiline
Classification / Family	Tetraethynylbenzene, COF ligands

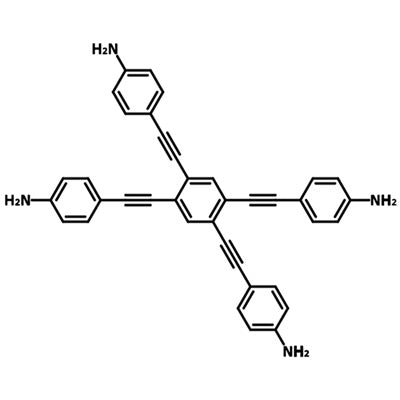

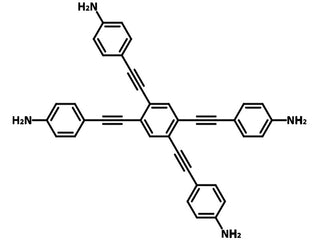

Chemical Structure

Product Details

Purity	>98%
Melting Point	N/A
Appearance	Green/Dark Yellow powder/crystals

MSDS Documentation

1,2,4,5-Tetra((4-aminophenyl)ethynyl)benzene MSDS Sheet

Literature and Reviews

De Novo Design and Facile Synthesis of 2D Covalent Organic Frameworks: A Two-in-One Strategy, Y. Li et al., J. Am. Chem. Soc., 141, 35, 13822–13828 (2019); DOI: 10.1021/jacs.9b03463.
An In Situ Film-to-Film Transformation Approach toward Highly Crystalline Covalent Organic Framework Films, Y. Lv et al., CCS Chem., 4 (5), 1519-1525 (2021); DOI: 10.31635/ccschem.021.202101025.
