High Conductivity Aqueous Coating Formulation
Used in transparent electrodes, LC writing boards (e-writers), smart windows, and liquid crystal and touch screen displays

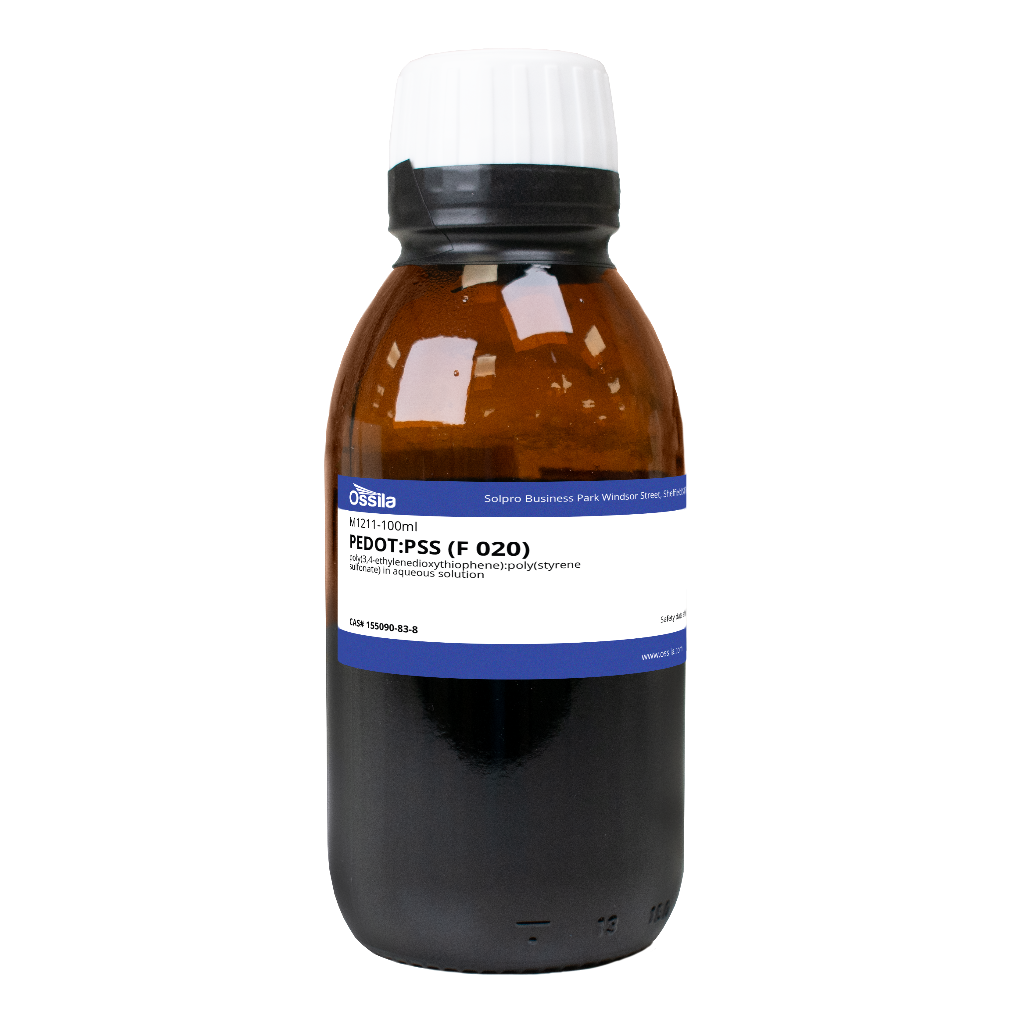

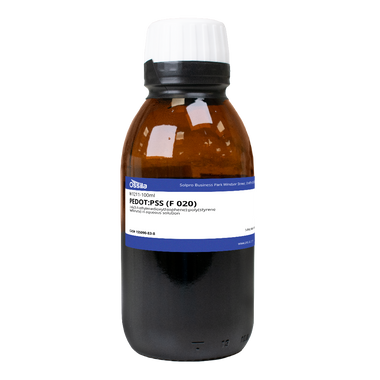

F 020 PEDOT:PSS (CAS number 155090-83-8) is a PEDOT:PSS aqueous dispersion developed for coating formulation.
F 020 is one of the most conductive aqueous PEDOT:PSS dispersions with sheet resistance range of 100 - 1000 Ohm/sq, similar to that of Clevios™ PH 1000. Apart from glass and ITO surface, F 020 PEDOT:PSS can be directly coated on textiles and plastic such as polyaniline (PA), polyethylene (PE), polyethylene terephthalate (PET), polypropylene (PP) by a range of processes, including spin coating, slot die coating, and dip coating.
F 020 PEDOT:PSS coated films find application in transparent electrodes, LC writing boards, smart windows, wearable electronics and, liquid crystal and touch displays.
Versatile Use
Wide range of applications
High Quality
Quality formulation and tailored high conductivity
Facile Processability
Can be directly coated on textiles and plastic
Worldwide Shipping
Quick and reliable shipping
Technical Data
| Solvent | Water |
| Composition | PEDOT:PSS |
| Solid Content | 3.0 – 4.0 wt.% |
| Sheet Resistance | 100 – 1000 Ω/sq |
| Conductivity | High conductivity |
| Particle Size Distribution | N/A |
| Viscosity | 50 – 100 mPa.s at 20°C (100 s-1) |
| pH Value | N/A |
| Packaging | 100 ml of solution sealed in a light resistant bottle with temperature indicator |
| Storage | 3 – 5 °C |
MSDS Document
F 020 PEDOT:PSS MSDS SheetFurther Content Information
What is PEDOT:PSS?
PEDOT:PSS is a blend of two distinct polymers: poly(3,4-ethylenedioxythiophene) (PEDOT) and polystyrene sulfonate (PSS).
Read more...
PEDOT and PEDOT:PSS Synthesis
PEDOT synthesis involves the oxidative chemical or electrochemical polymerization of EDOT monomer. The choice of counterions and polymerization method significantly affects the conductivity, work function, and stability of the resulting PEDOT polymer.
Read more...
