F 100T PEDOT:PSS
CAS Number 155090-83-8
Materials, Organic Conductors, PEDOT:PSS and PEDOT Polymer Blends
Aqueous Coating Formulation Blue PEDOT:PSS Dispersion
Used for applications in liquid crystal display and writing boards, smart windows, and touch panels
Specifications | MSDS | Resources and Support
F 100T PEDOT:PSS (CAS number 155090-83-8), an aqueous stabilized PEDOT:PSS blue dispersion with improved stability in harsh environment, is designed for conductive formulations in touch panels, liquid crystal display and writing boards. The aqueous dispersion of F 100T PEDOT:PSS can be readily deposited onto various substrates by means of spin-coating, spray-coating, slot-die coating or dip-coating.
F 100T PEDOT:PSS offers high conductivity and great sensitivity, and is ideal for touch screen displays, offering great conductivity when F 100T PEDOT:PSS solution is treated with polar solvent, i.e. DMSO before deposition. PEDOT:PSS films enable touch sensitivity and act as transparent electrodes for driving OLEDs or liquid crystal displays.
While most of the indium tin oxide (ITO) films increase in resistance after about 5 bending cycles, F 100T PEDOT:PSS can hold its resistance up to 10,000 bending cycles, even in harsh environmental conditions.
High Stability
Ideal for applications in harsh environment
Worldwide Shipping
Quick and reliable shipping
High Quality
Quality formulation and tailored high conductivity
Excellent Performance
High conductivity and high optical transparency
Technical Data
| Product Name | Clevios™ F 100T |
|---|---|
| Solvent | Water |
| Composition | PEDOT:PSS |
| Solid Content | 1.45 – 1.80 wt.% |
| Sheet Resistance | 100 – 1000 Ω/sq |
| Conductivity | 500 S/cm (with the addition of 5% DMSO) |
| Particle Size Distribution | N/A |
| Viscosity | 30 – 80 mPa.s at 20°C (100 s-1) |
| pH Value | N/A |

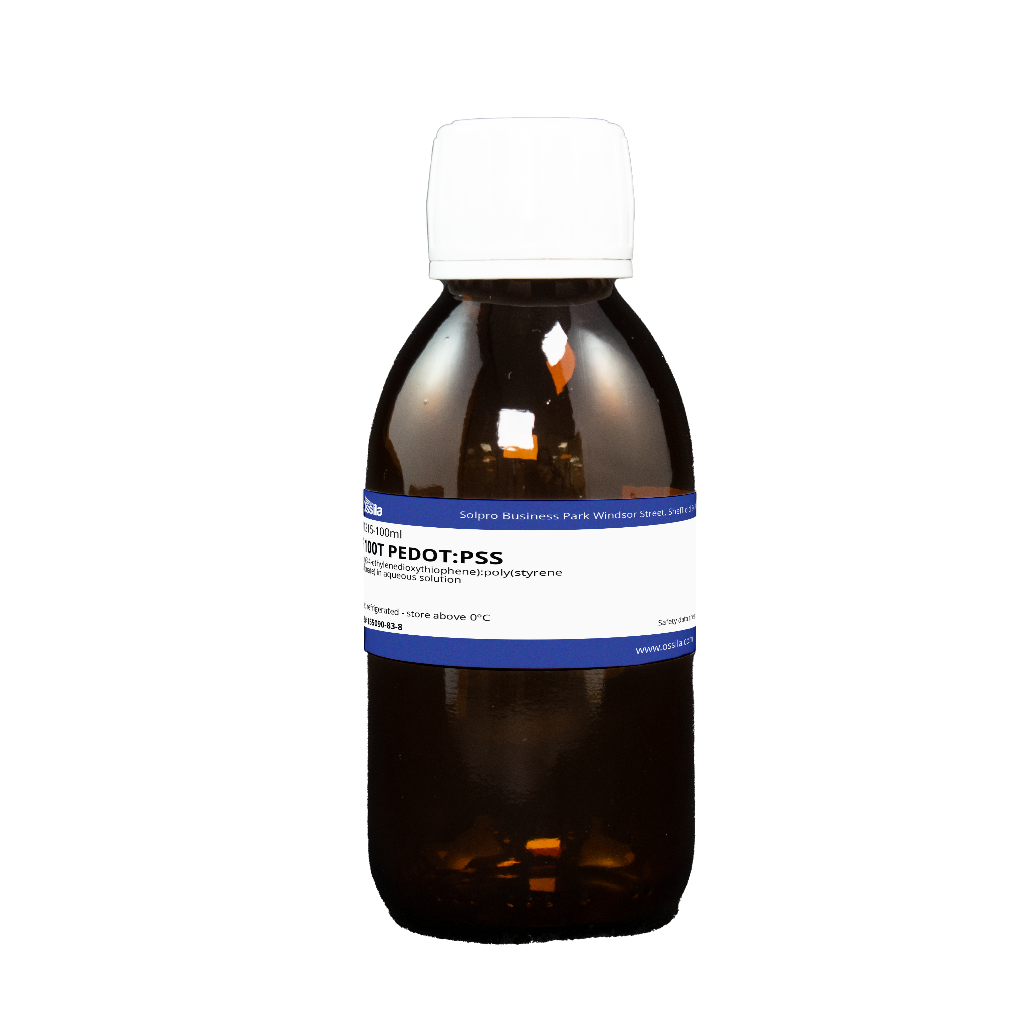

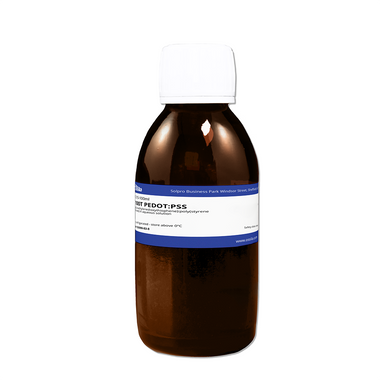

| Packaging | 100 ml of solution sealed in a light resistant bottle with temperature indicator, and 1 L in a plastic bottle with temperature indicator. |
| Storage | 3 – 5 °C |
MSDS Document
F 100 T EDOT:PSS MSDS SheetResources and Support
How to Spin Coat PEDOT:PSS
For the deposition of thin films of PEDOT:PSS on a freshly prepared surface, we recommend using a vacuum-free spin coater and following this five-step process:
Read more...
PEDOT and PEDOT:PSS Synthesis
PEDOT synthesis involves the oxidative chemical or electrochemical polymerization of EDOT monomer. The choice of counterions and polymerization method significantly affects the conductivity, work function, and stability of the resulting PEDOT polymer.
Read more...
